Dumbbell Charts: Custom Visual Vs. Charticulator

One comment

In this tutorial, we’ll discuss the not-so popular visual in Power BI called Dumbbell charts. A Dumbbell chart is commonly used to show comparison between two or more groups of data points. This is also sometimes called a DNA chart.

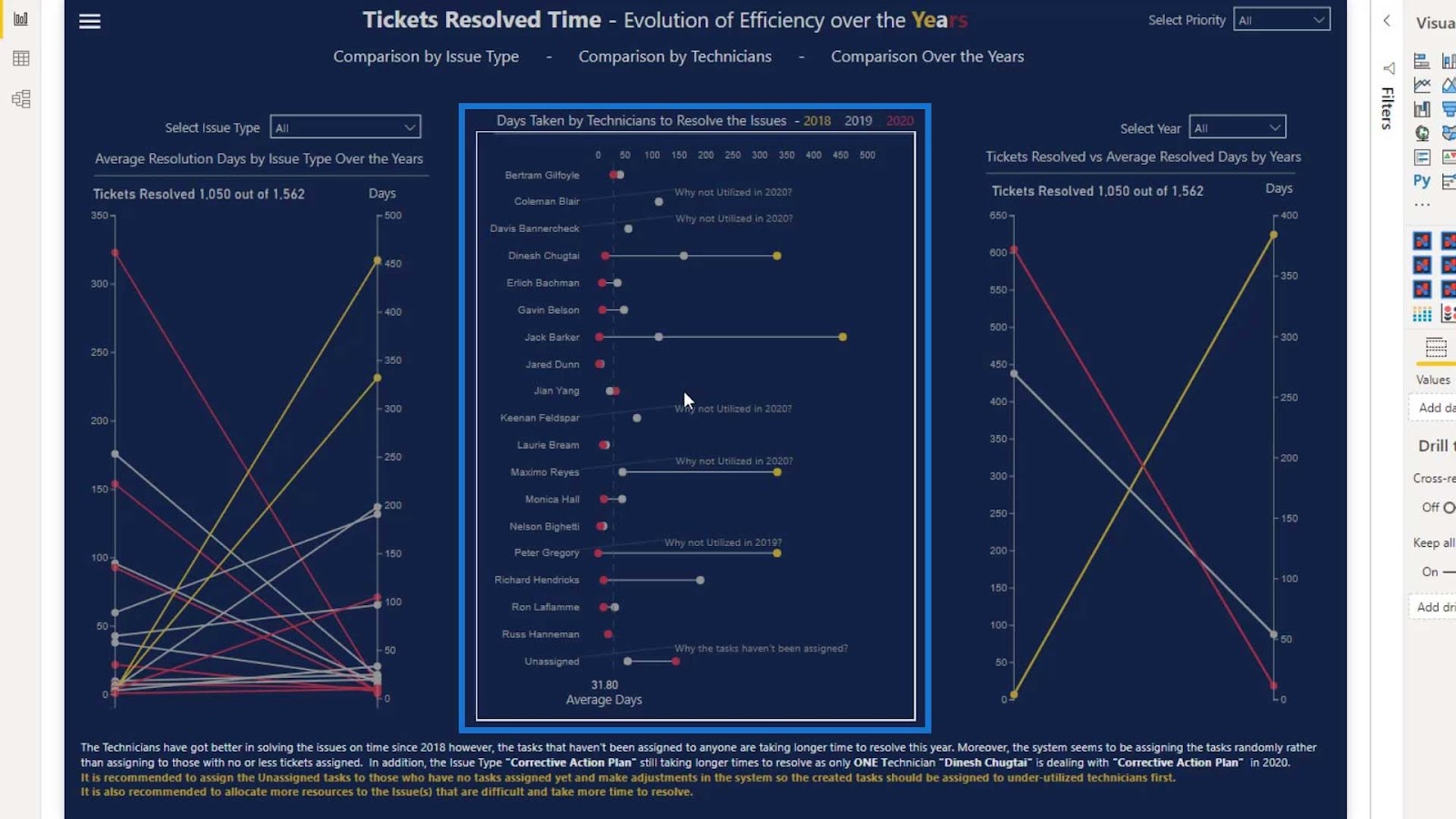

Here’s an example of a dumbbell chart. This is created with Charticulator, and not with via custom visual from the marketplace.

Dumbbell Charts using Charticulator

But for this tutorial, we’ll be using a dumbbell chart custom visual from the marketplace.

Creating Dumbbell Charts In Power BI

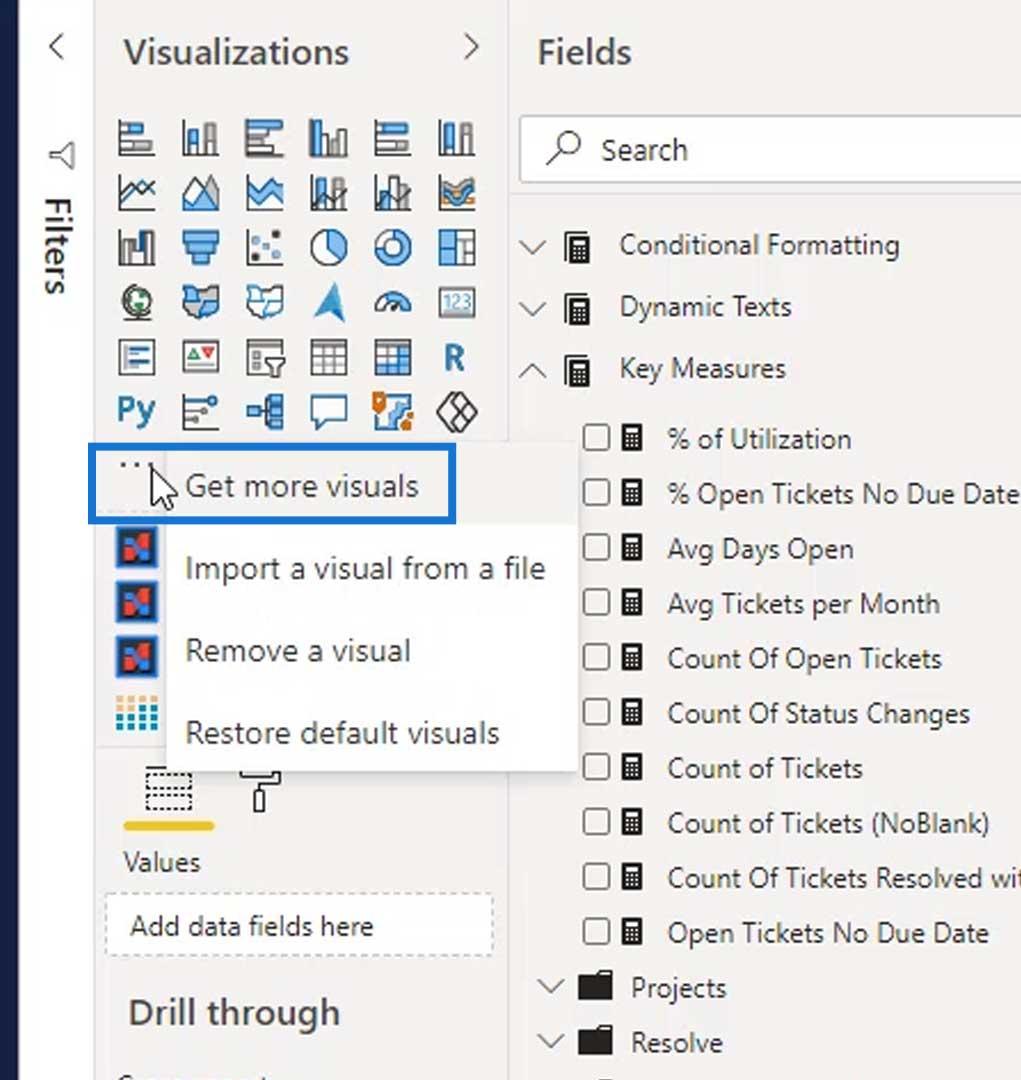

Click the 3 dots under the Visualizations pane, then select Get more visuals.

Dumbbell Charts in Power BI

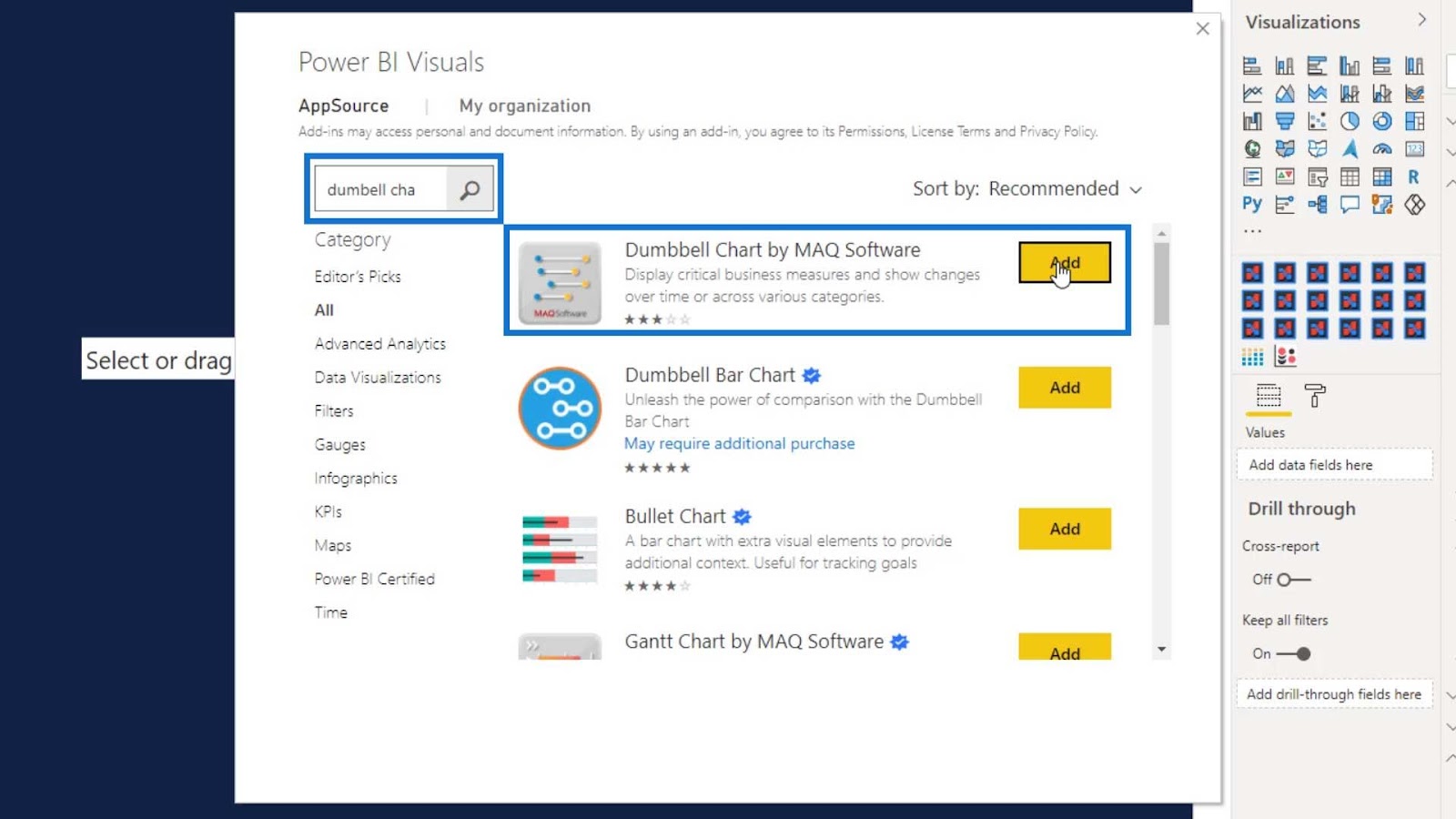

Search “dumbbell chart” in the search box, then add the Dumbbell Chart by MAQ Software

After that, add it to our report page and resize it as shown in the image.

To use this visual, we must have the R script installed on our Power BI. To enable or install the R script, click File from the menu bar.

Dumbbell Charts in Power BI

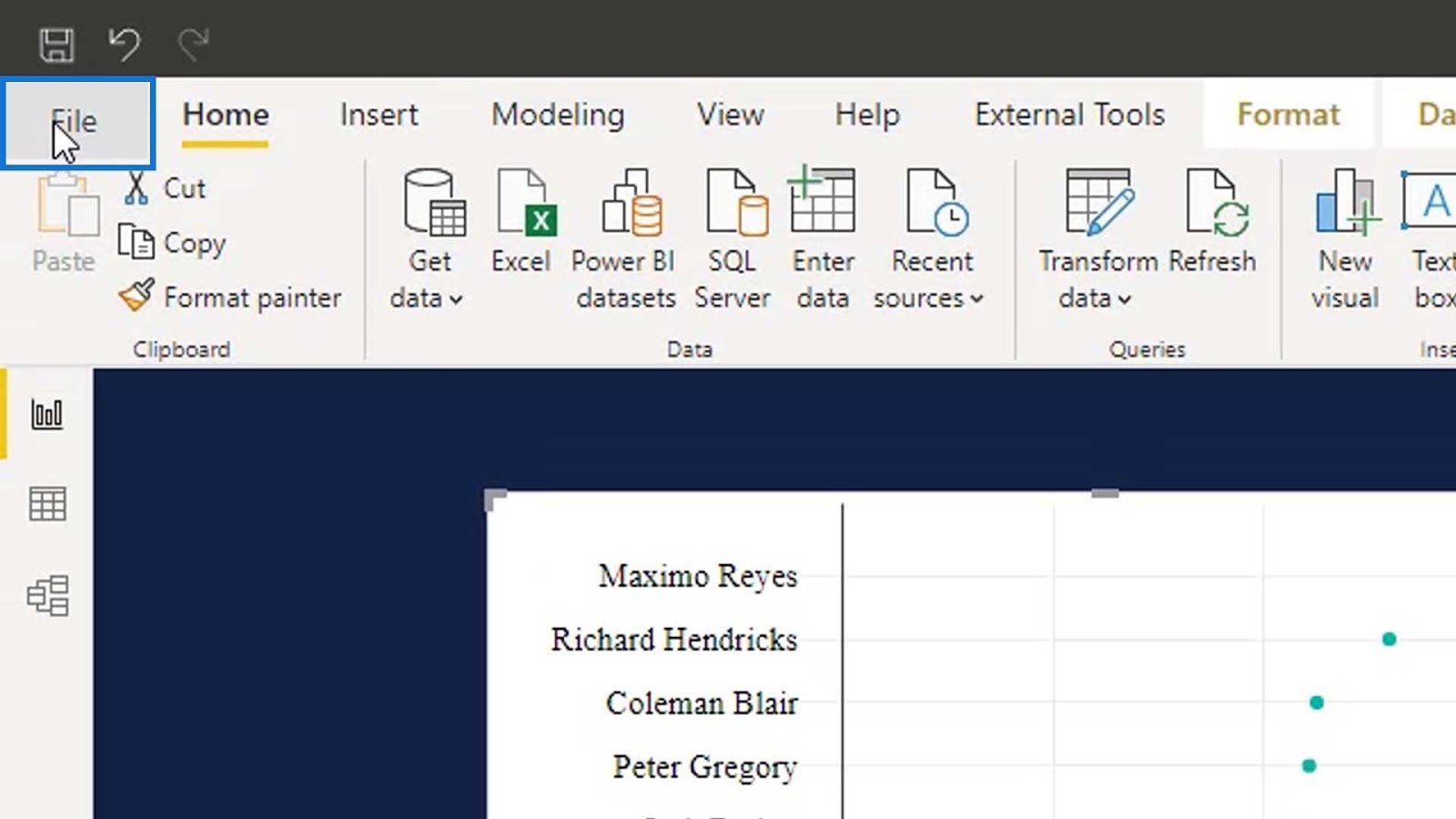

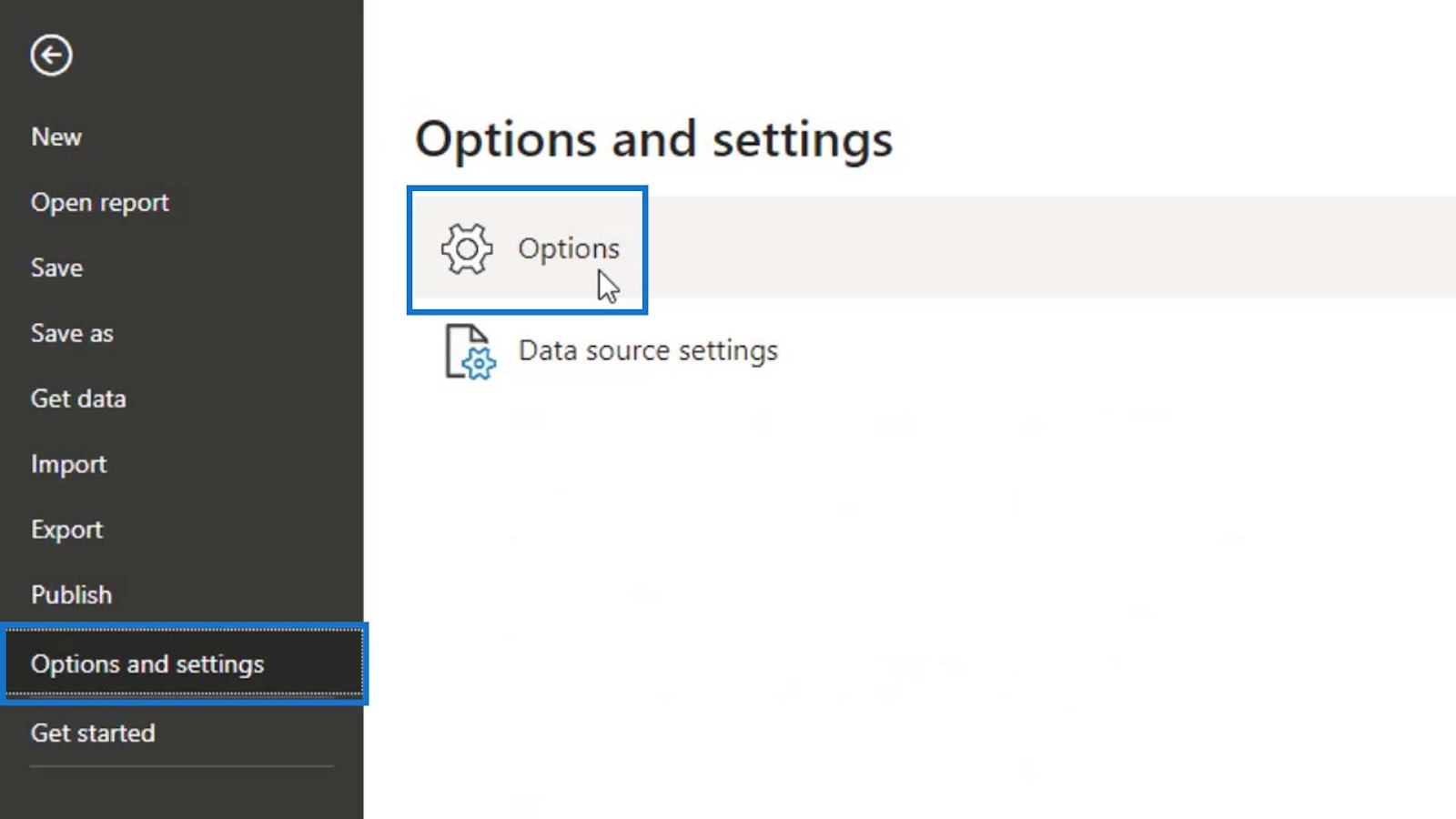

Go to Options and Settings, then click Options

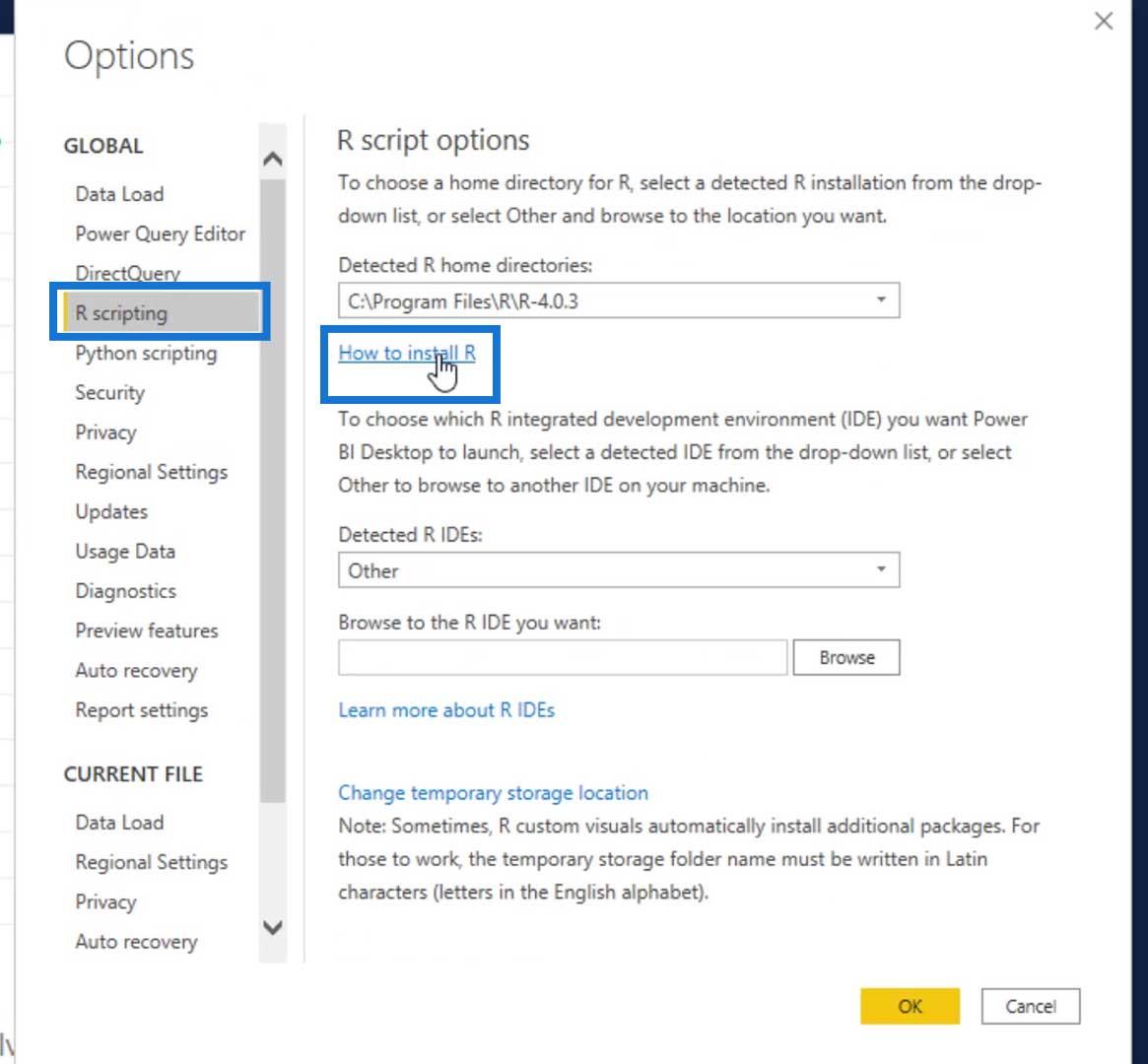

Select R scripting. Then, click the “How to install R” to install the R script. Make sure to restart Power BI after installing it.

Dumbbell Charts in Power BI

In the Category field, let’s add Assignee. Just like what I mentioned in the Dot Plot tutorial, the Assignee is responsible for solving the issue created by the employees in the organization.

Dumbbell Charts in Power BI

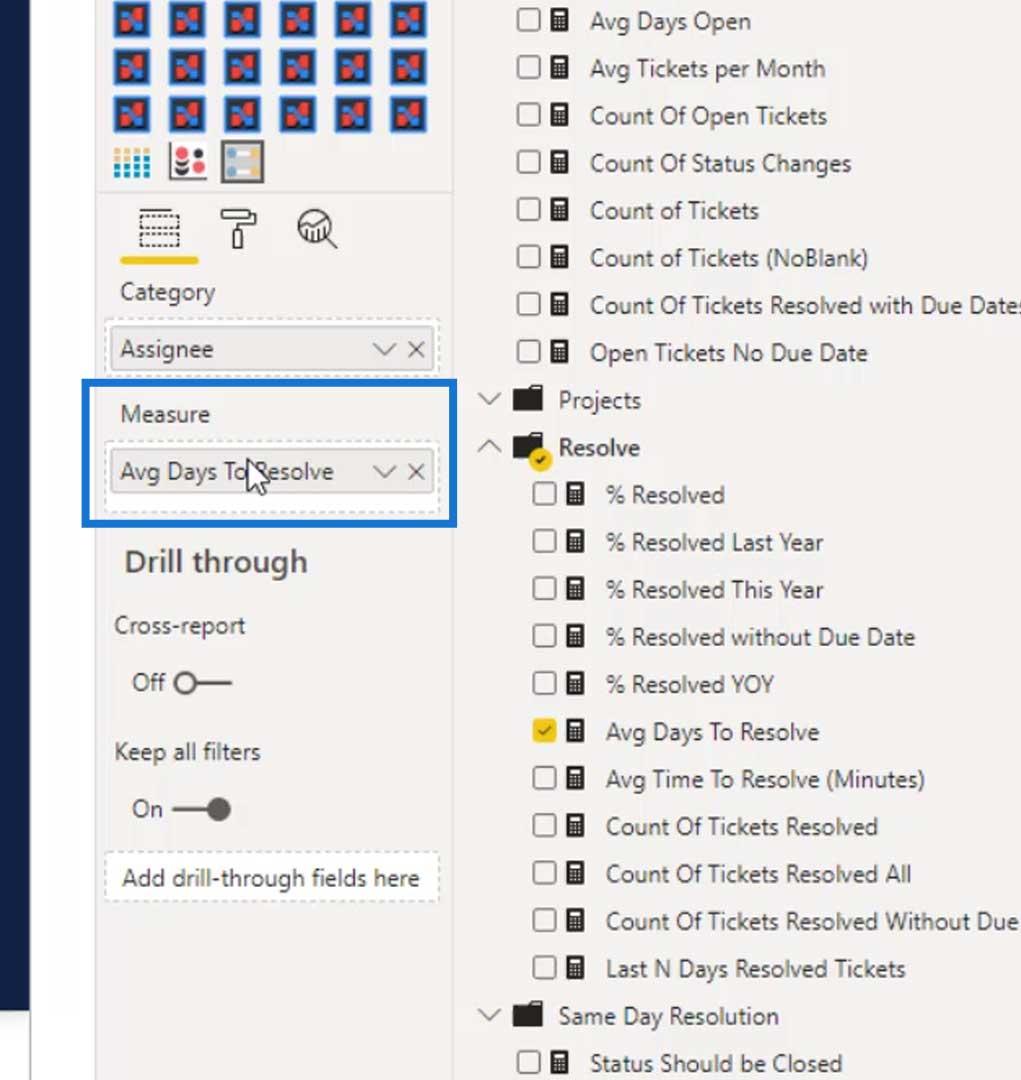

For the Measure field, let’s use the Avg Days To Resolve measure.

Dumbbell Charts in Power BI

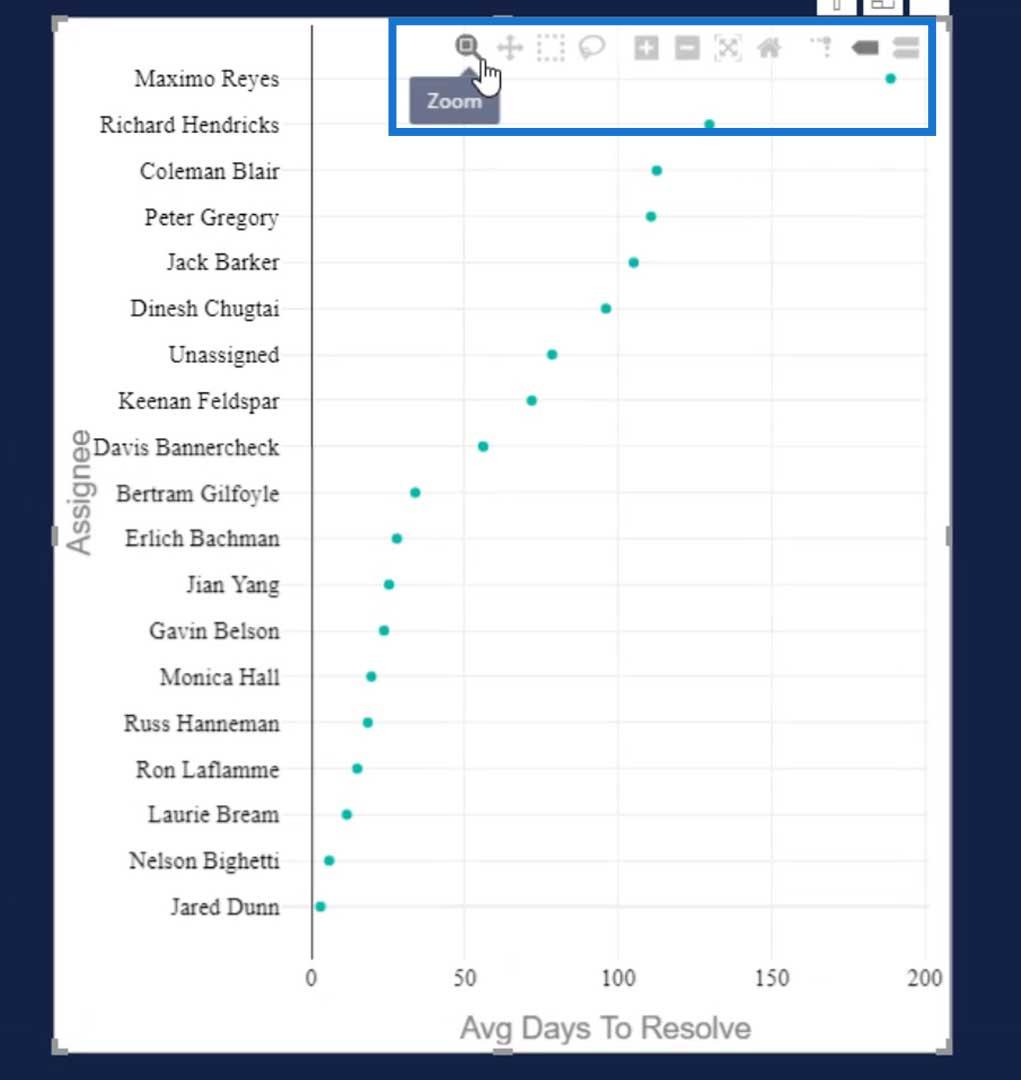

The output should now look like this. Different tools for zooming, panning, selecting, and other tools are also available.

Dumbbell Charts in Power BI

Limitations Of Dumbbell Charts

1. Adding Two Categories Is Not Allowed

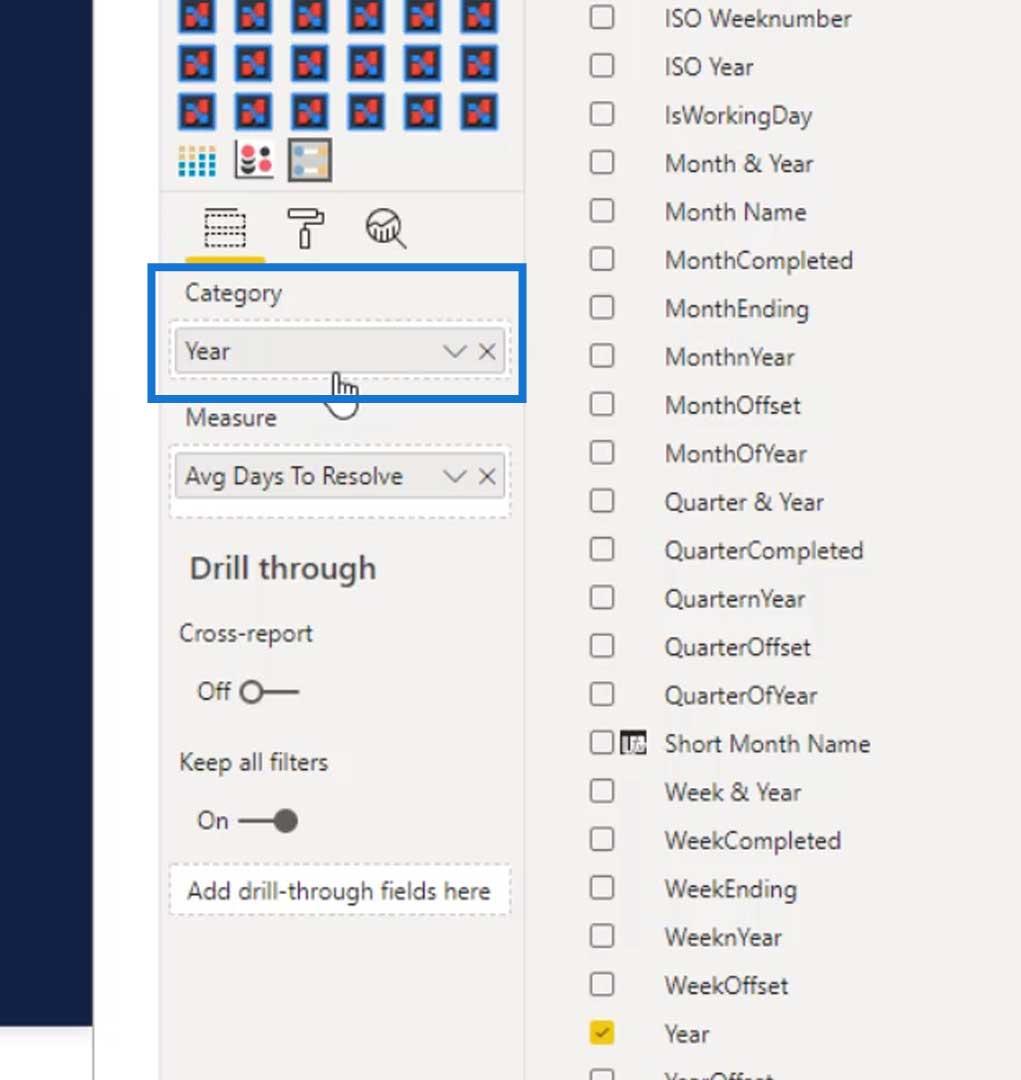

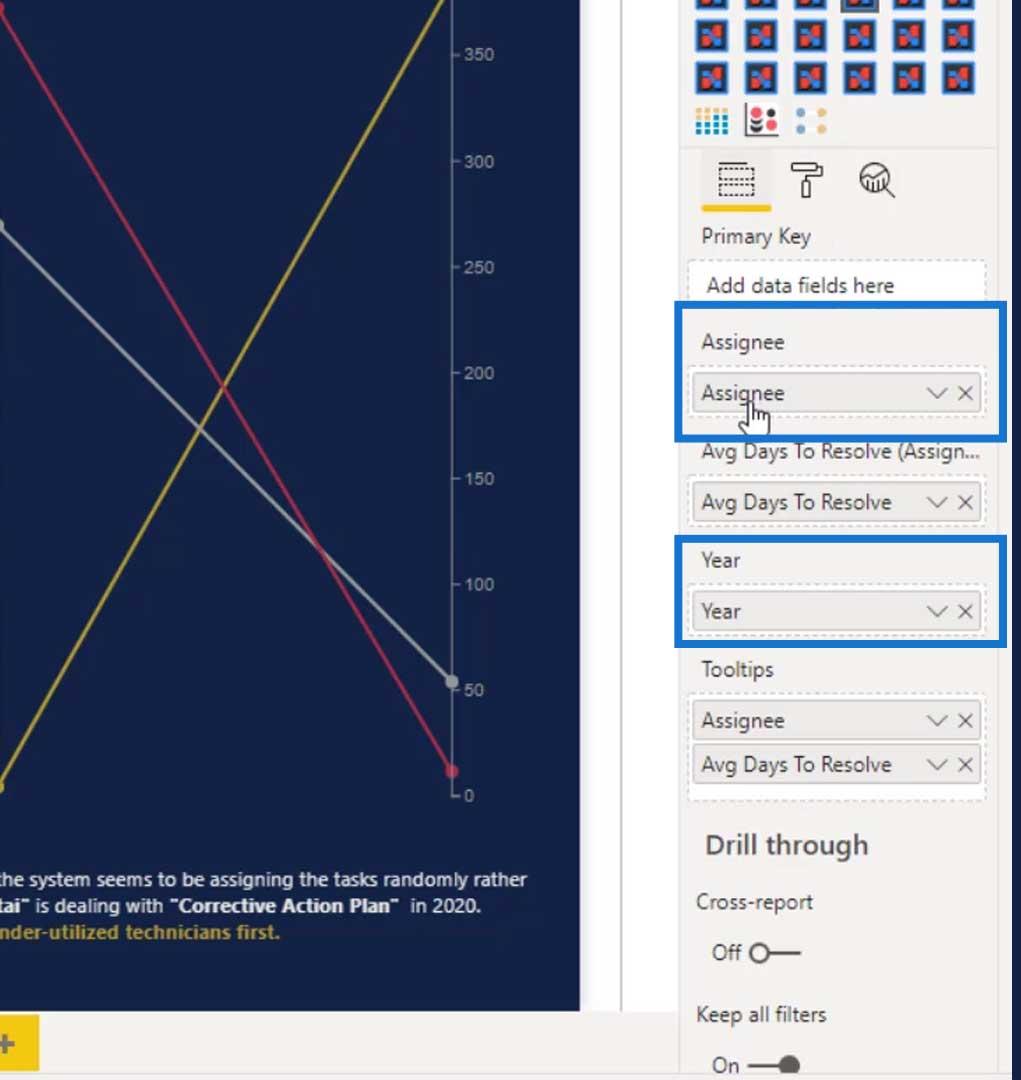

One of the limitations of this visual is that we won’t be able to add 2 or more categories. As you can see, upon adding the Year, the Assignee was automatically changed.

Dumbbell Charts in Power BI

Let’s change this again to Assignee

Dumbbell Charts in Power BI

Let’s add another measure (Count of Tickets) in the Measure field. As you can see, this visual accepts multiple measures but not multiple categories.

Dumbbell Charts in Power BI

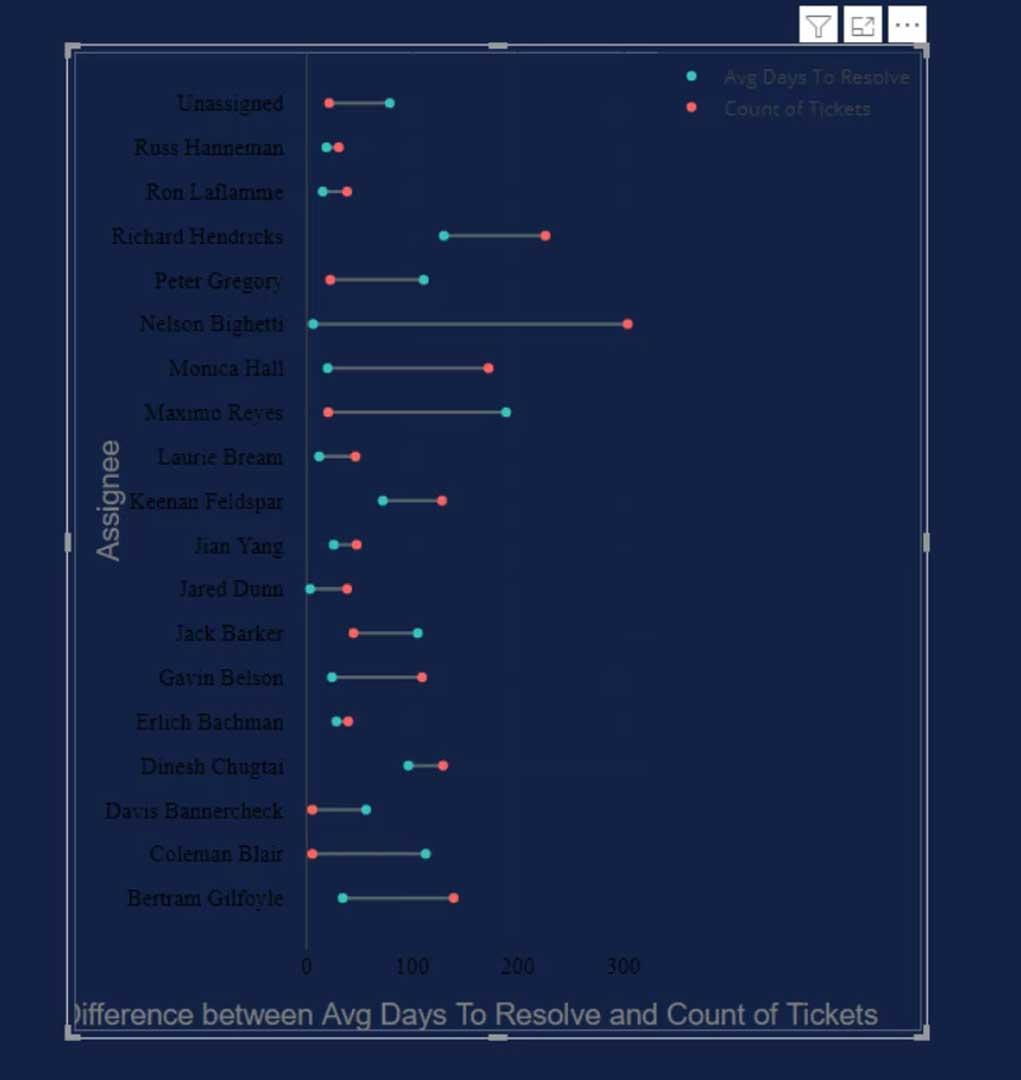

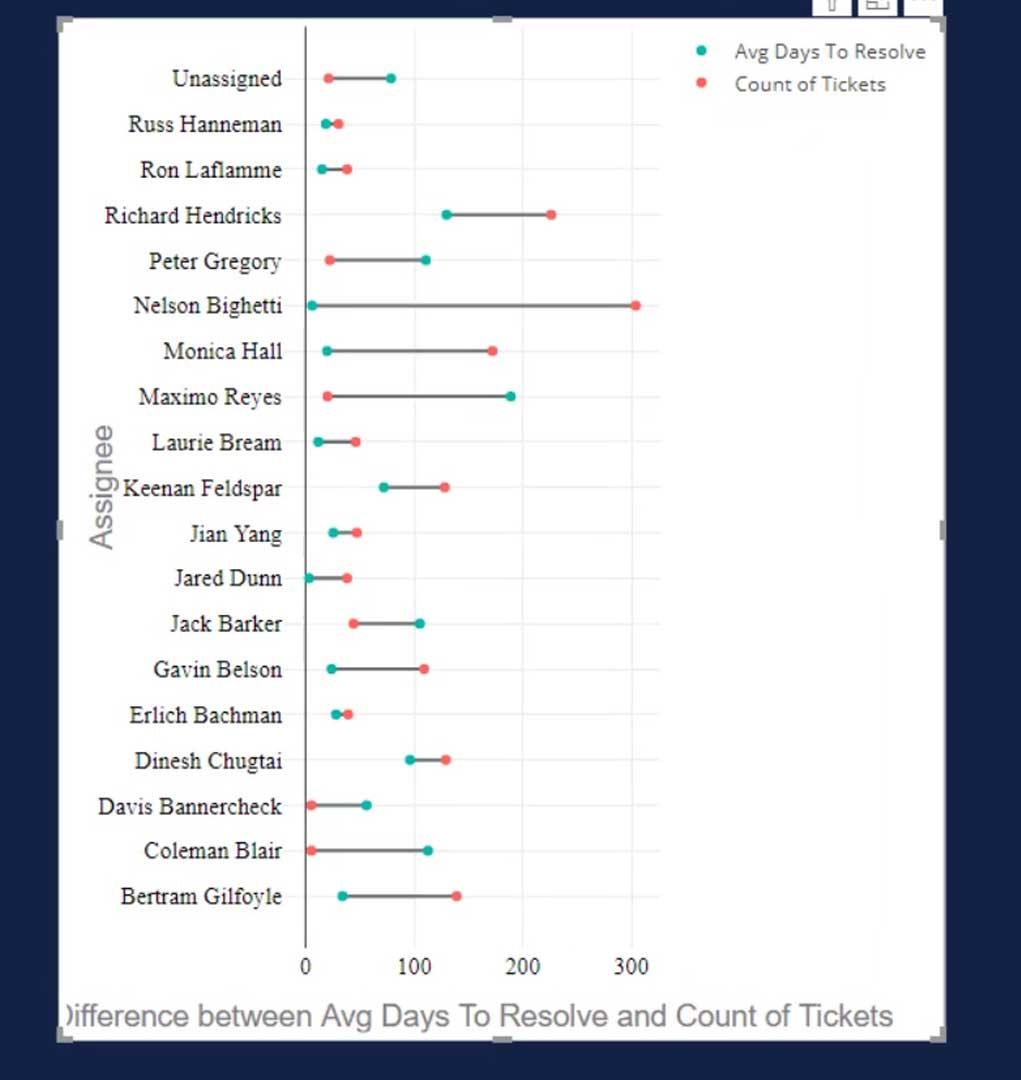

This will result to this output.

Dumbbell Charts in Power BI

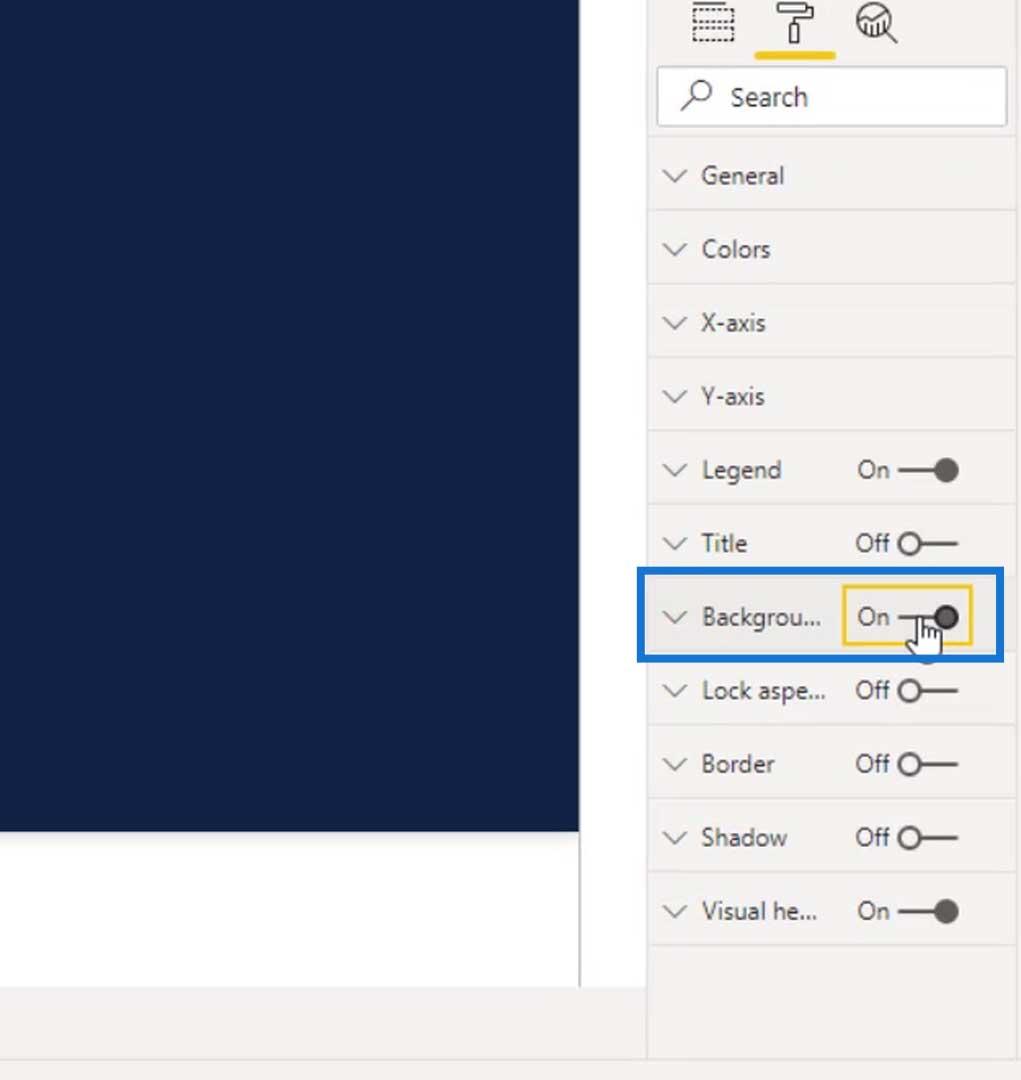

We can start modifying the appearance of this chart by turning off the Background

Dumbbell Charts in Power BI

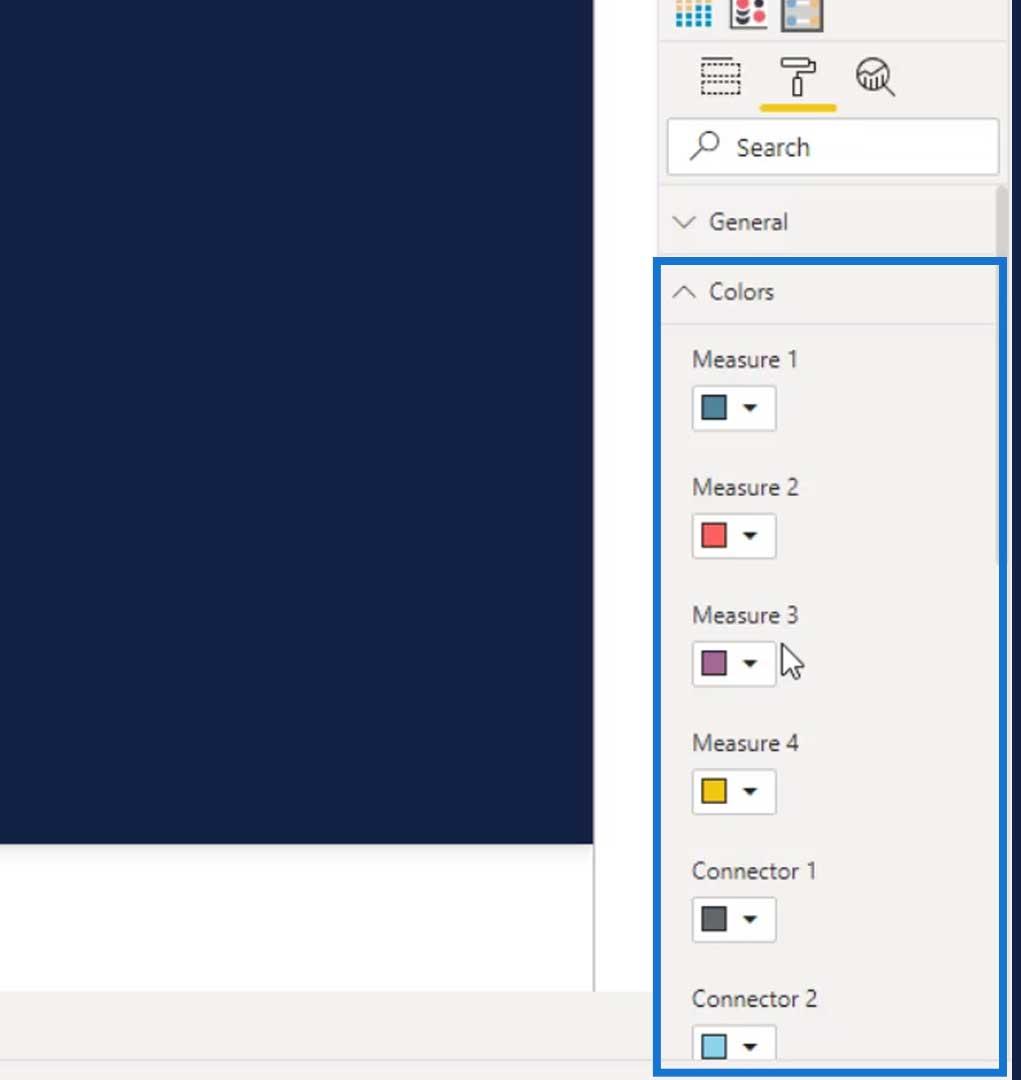

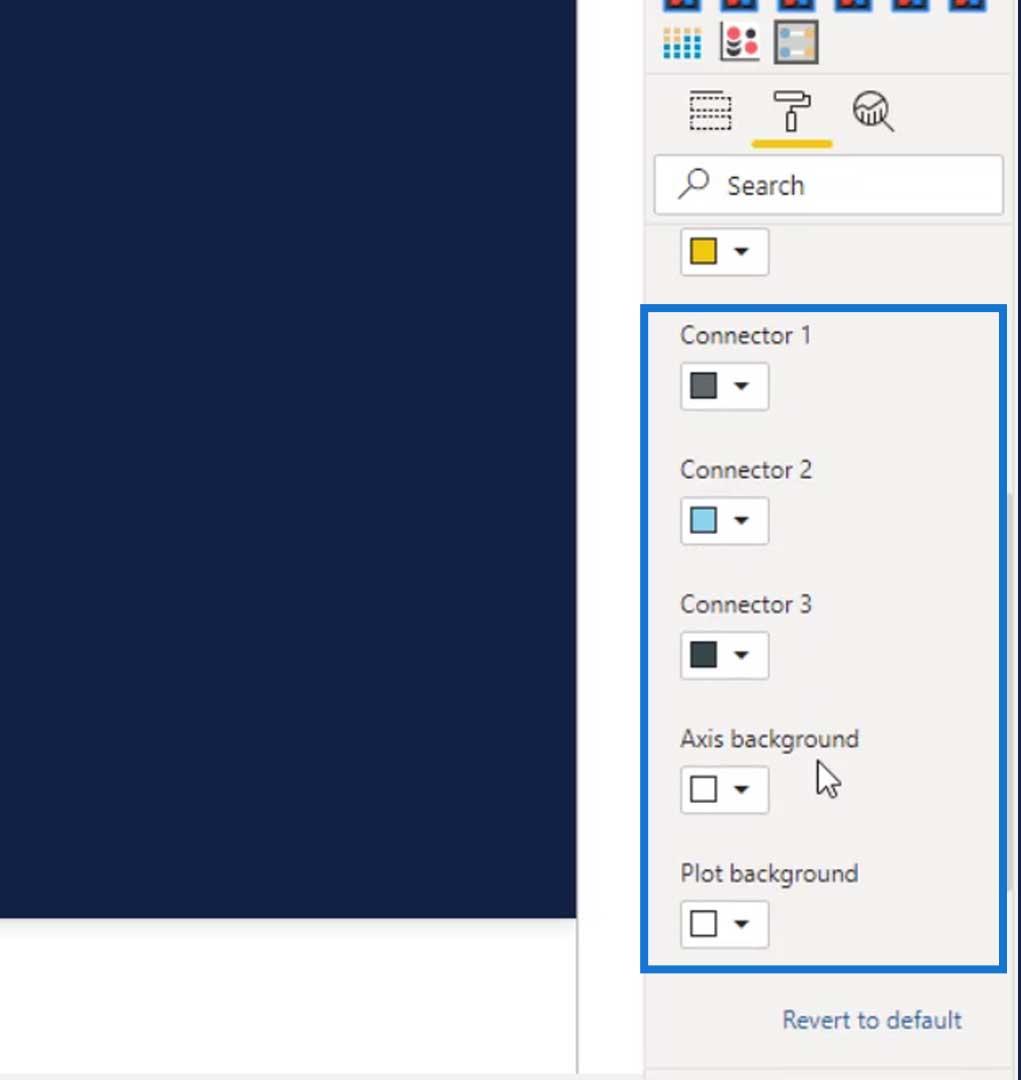

Under the Colors, we can change the Measure, Connector, Axis and Plot background colors.

Dumbbell Charts in Power BI

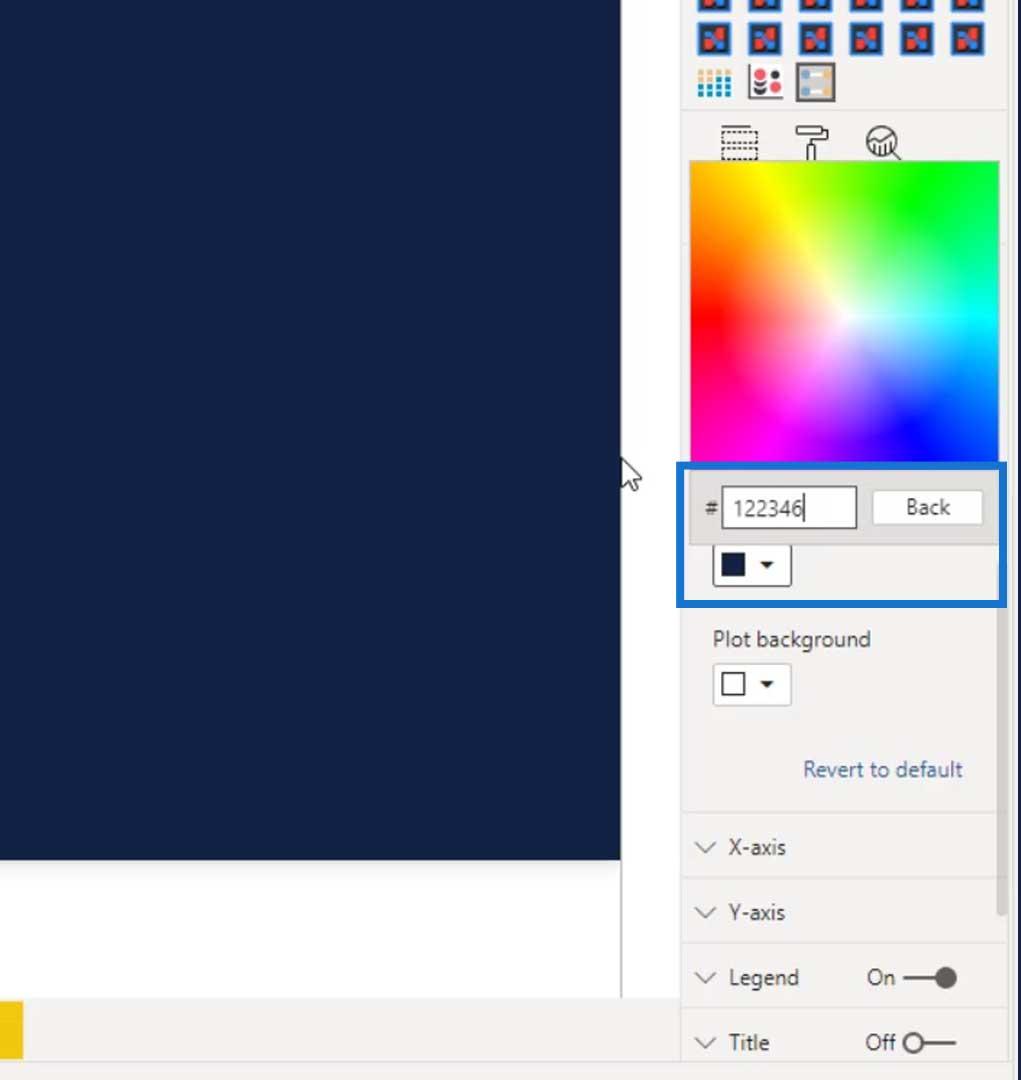

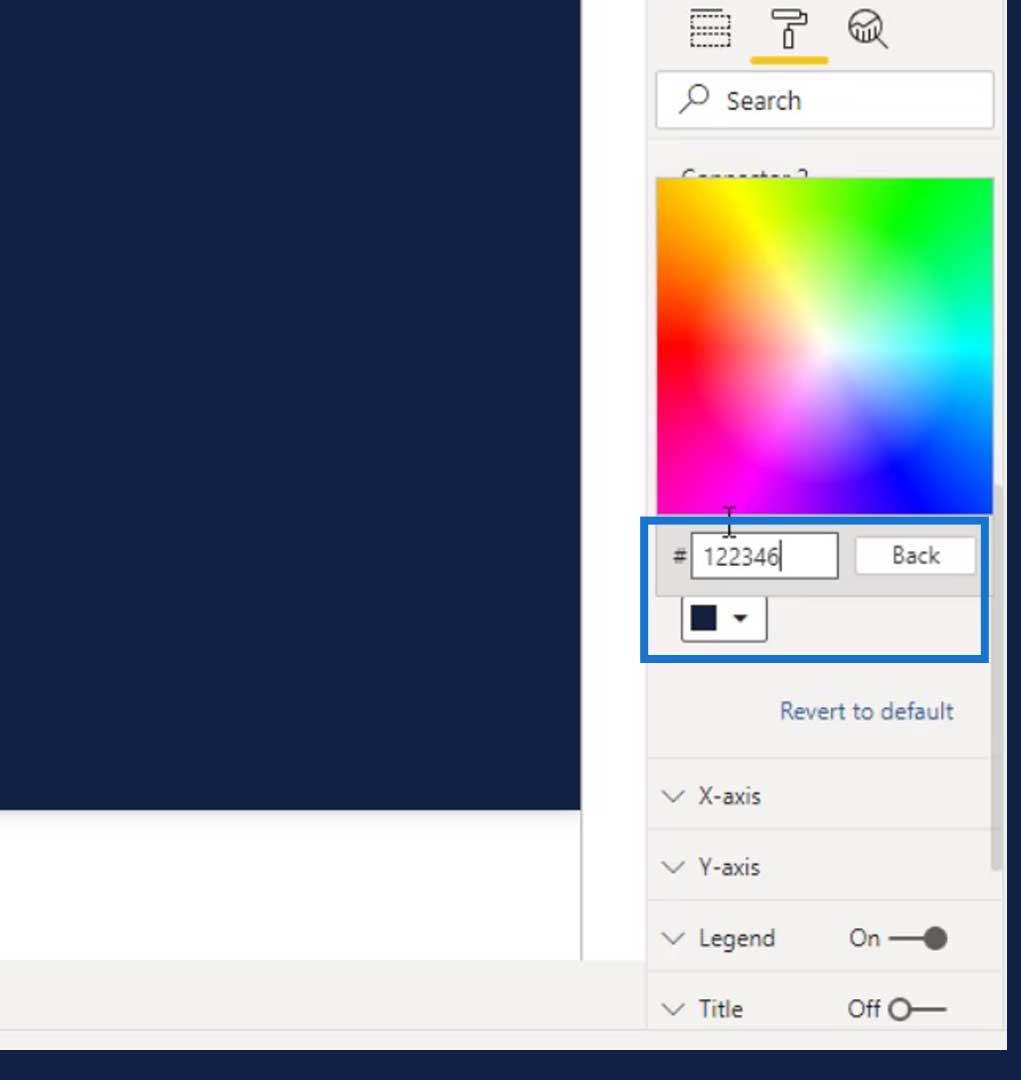

Let’s make the background color of the Axis similar to the background color of our report page.

Dumbbell Charts in Power BI

Next is to make the background color of Plot similar to the background color of our report page as well.

Dumbbell Charts in Power BI

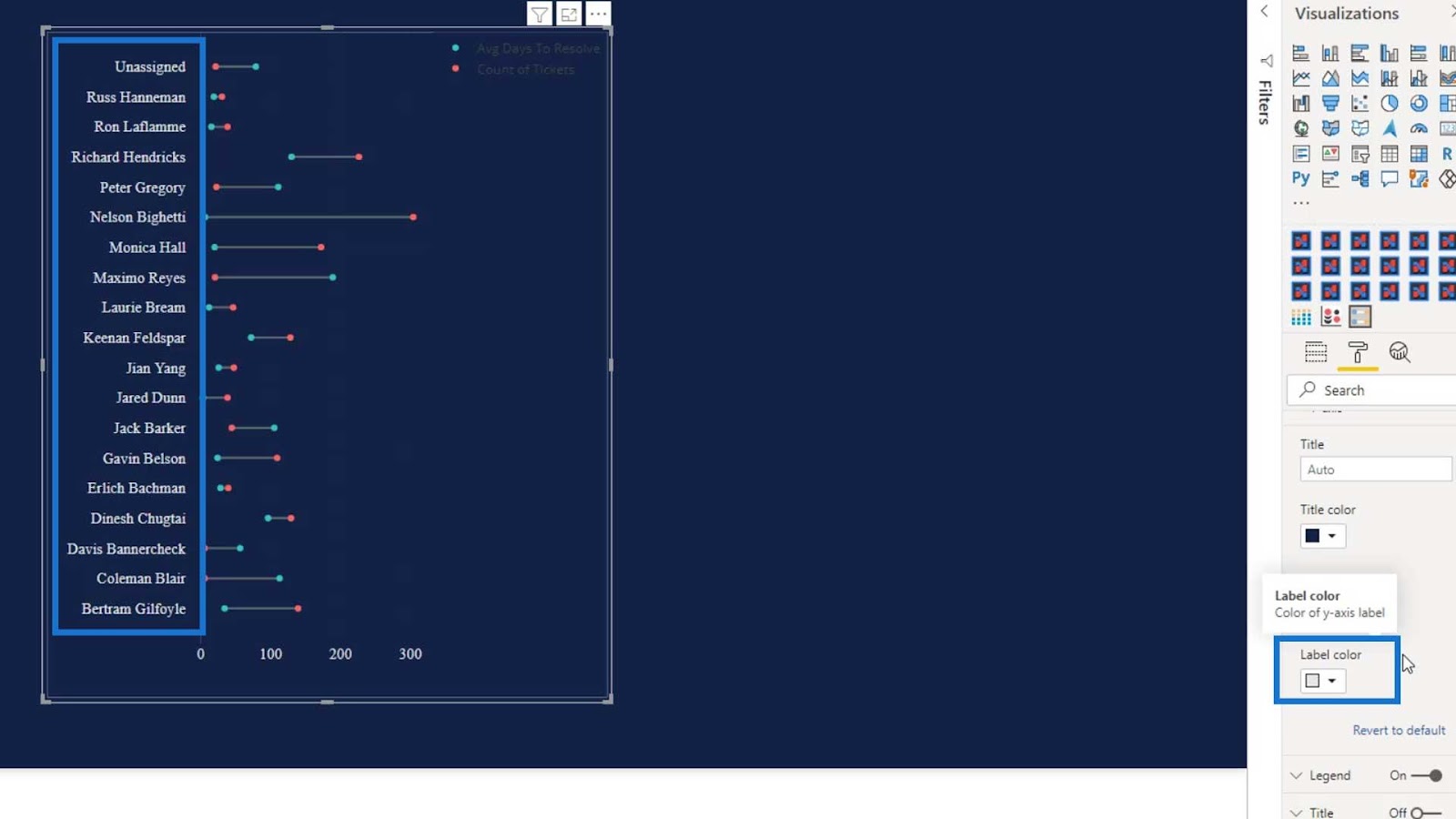

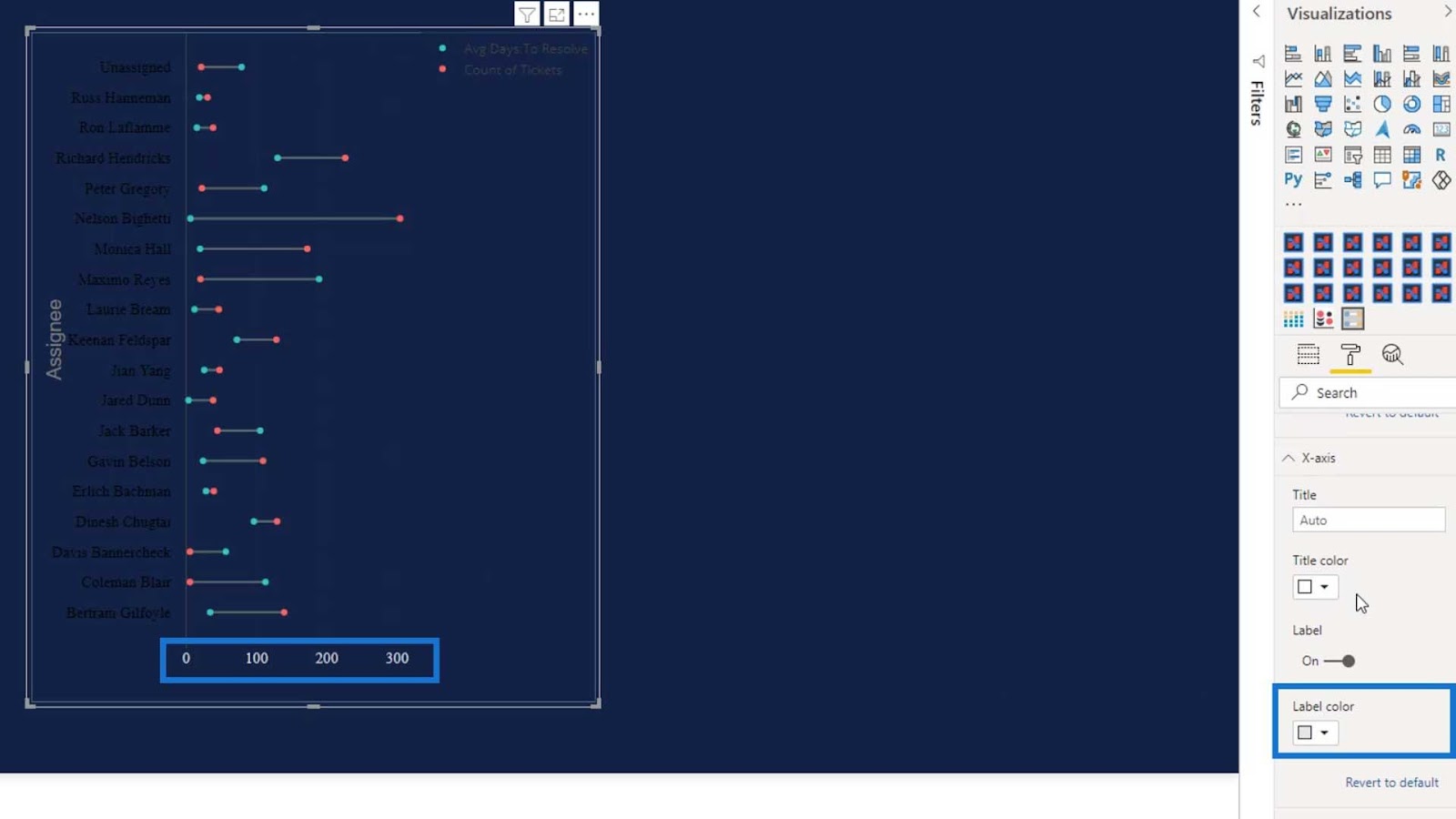

Let’s also change the color of the labels to white.

Dumbbell Charts in Power BI

We can do the same modifications with the Y-axis. Let’s say we want to hide the Assignee title in this part.

Dumbbell Charts in Power BI

We don’t have any options to turn off the Y-axis title. So, let’s just change the Title color to the color that’s similar to the background color.

Dumbbell Charts in Power BI

As you can see, the Assignee title is not visible anymore. It’s still there but it looks hidden because it has the same color as the background.

Let’s also change the Label color to white.

Dumbbell Charts in Power BI

2. There’s No Option To Change The Color Of The Legend

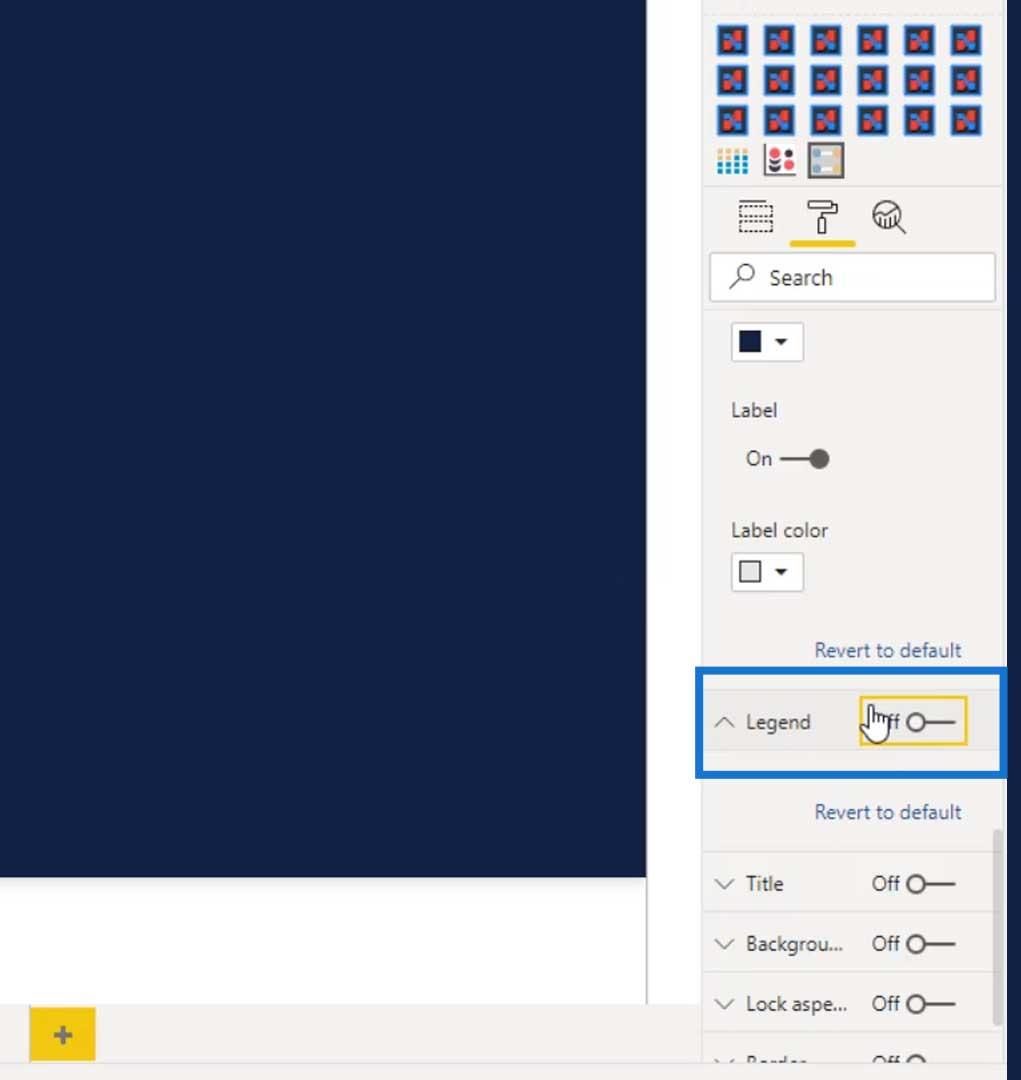

Another limitation of this visual is that we don’t have the option to change the color of the legend. So, let’s just turn it off instead.

Dumbbell Charts in Power BI

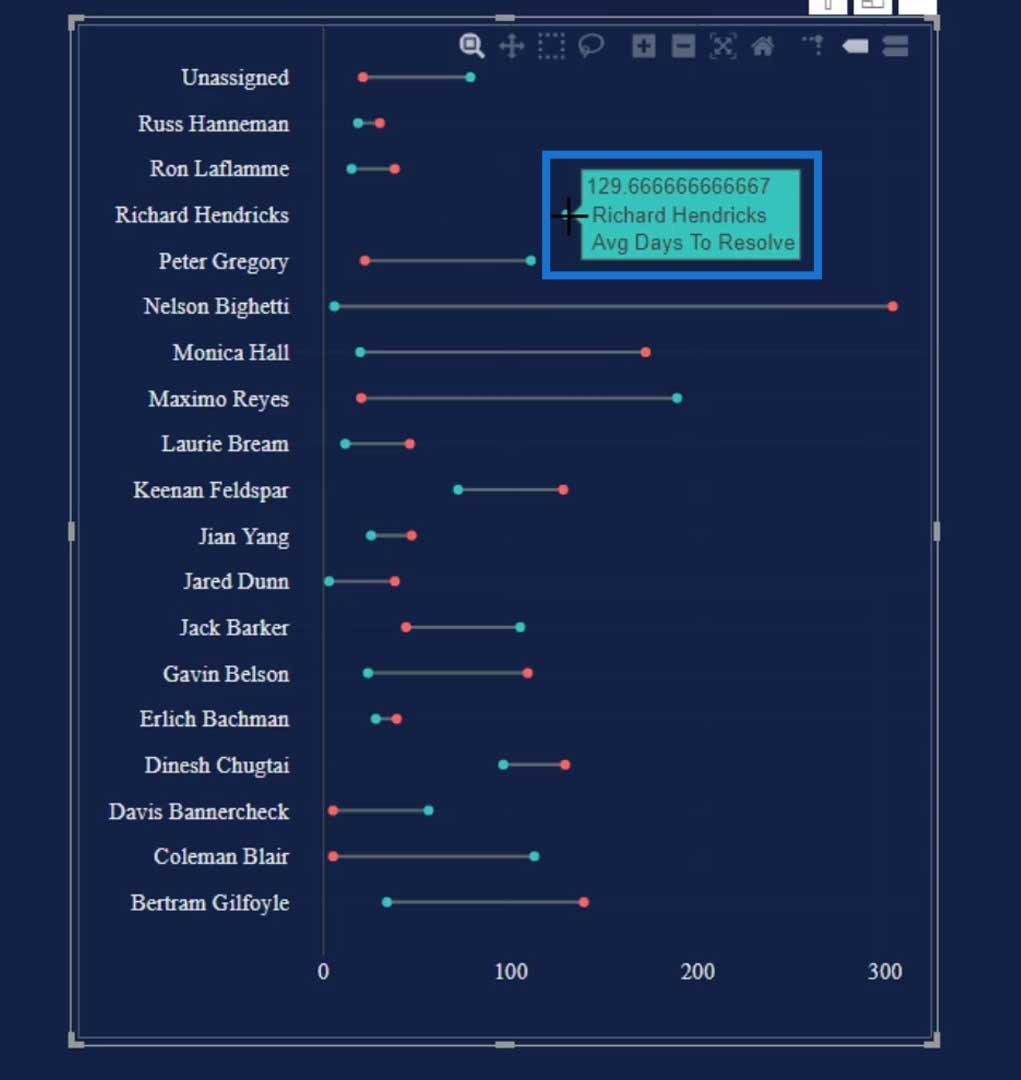

However, we can make a measure that can define the colors of the dots. For example, if we hover over this portion, it indicates that Richard Hendricks took an average of 129 days to resolve the issues.

Then, if we hover over the red dot, we can see that there are 226 tickets assigned to him.

Dumbbell Charts in Power BI

This visual will work out if we want to assign one point to a number of sales before the promotion discounts, then another point with a number of sales after the promotion discounts. We can also add another point for a number of sales during peak period, and during off peak periods.

3. Conflicts Arise When Using Power BI Slicers

Another problem with Dumbbell charts is that if we use a filter or slicer, categories that don’t have any value will disappear or change their position in the axis.

In this example, let’s add a slicer, and use the Priority measure. Then, let’s filter by Highest priority. As you can see, the categories that don’t have any value have disappeared and also changed the position of the axis. Unfortunately, Power BI doesn’t have the option to turn this function off.

This is the reason why I chose to create a dumbbell chart in Charticulator

Dumbbell Charts In Charticulator

Here’s an example of a dumbbell chart that I created in Charticulator. If I slice the data in this chart, you’ll see that these categories will not change their position and will not disappear.

Dumbbell Charts In Charticulator

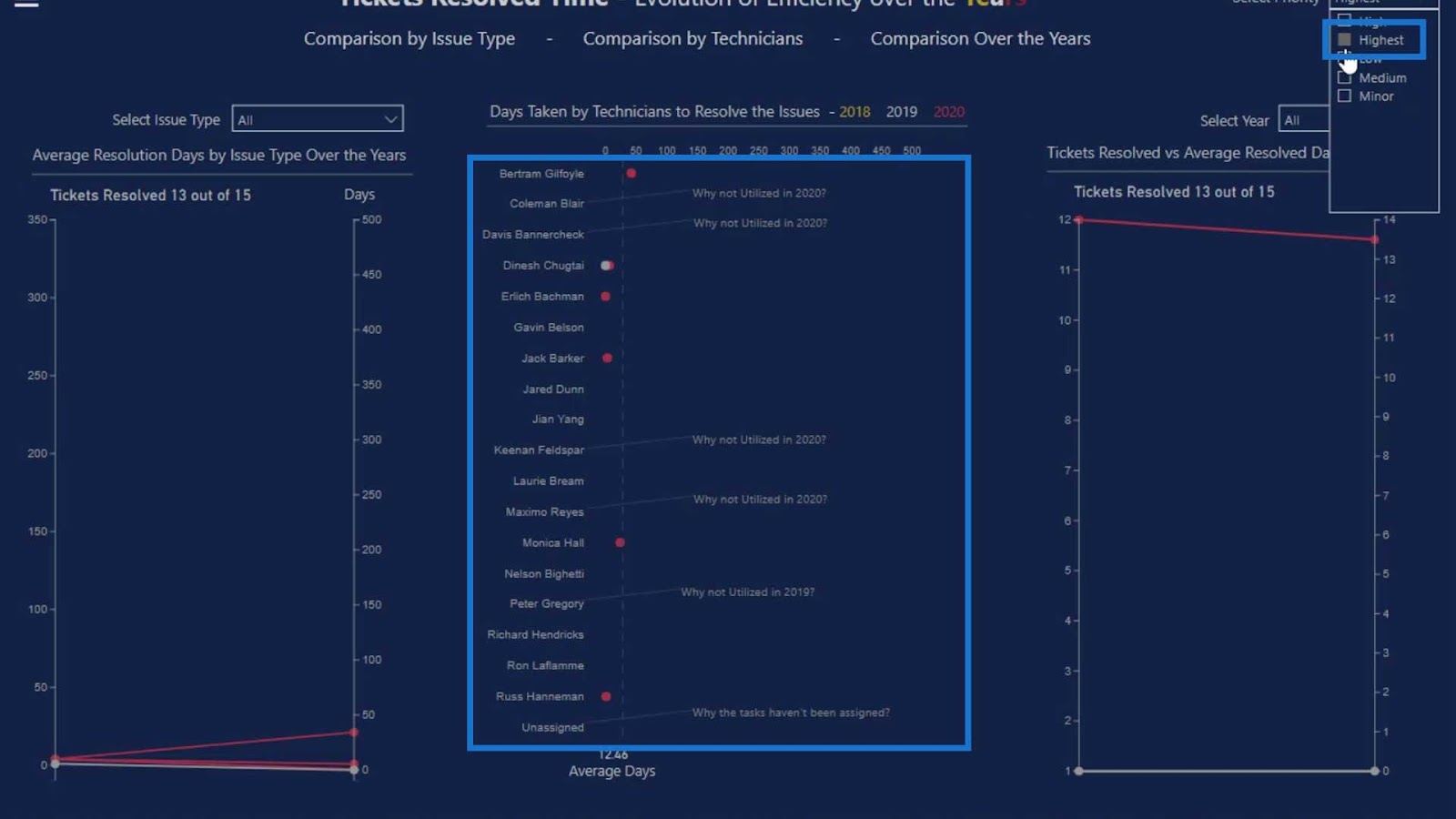

Once I click the Highest priority filter, you’ll see that the categories stayed in their position. This feature is very useful especially if we want to place static texts to tell the users some additional information.

Dumbbell Charts In Charticulator

Another thing with this visual that I created in the Charticulator is that it accepts multiple categories. As you can see, I’m categorizing it by Assignees and by Year.

***** Related Links *****
New Enterprise DNA Course: Advanced Visualization Techniques
Visualization Technique – Power BI Column Charts & Filters
Power BI Desktop Update: The Charticulator Visual

Conclusion

We’ve covered about dumbbell charts in this tutorial. We discussed how to create a dumbbell chart in Power BI custom visuals and its disadvantages. In Power BI, we can’t use two or more categories but it accepts multiple measures. Nevertheless, it’s still good that we can place multiple measures in this visual.

On the other hand, we can also create dumbbell charts in Charticulator. By doing it in Charticulator, we can freely use slicers without having to worry about conflicts or issues that the chart may exhibit.
