Power Automate Split Function And Arrays

No comments

Power Automate offers a variety of string functions that we can use in our MS flows. In this tutorial, we’ll find out the usage and importance of another complicated string function – the Power Automate split function.

The split function simply returns an array of items based on the provided string and a delimiter.

How The Power Automate Split Function Works

We need to define its parameters (text and delimiter) for this function to properly work.

Power Automate split

To explain it further, let’s say our text is “the apple falls far from the tree”. Then the delimiter is just a simple space.

Power Automate split

By using the split function, we’ll have an array that contains all the words within the text/string that we specified. An array is a collection of items.

Using The Power Automate Split Function

Let’s now have a sample use case to understand why we would want to do this. We’ll add another input in this sample flow that I previously created. Let’s set that as Input 4  then type in “Please enter the message that you want to cascade”.

Power Automate split

Then, let’s use the split function on our Message text. Under the Expressions tab, choose the split function.

Power Automate split

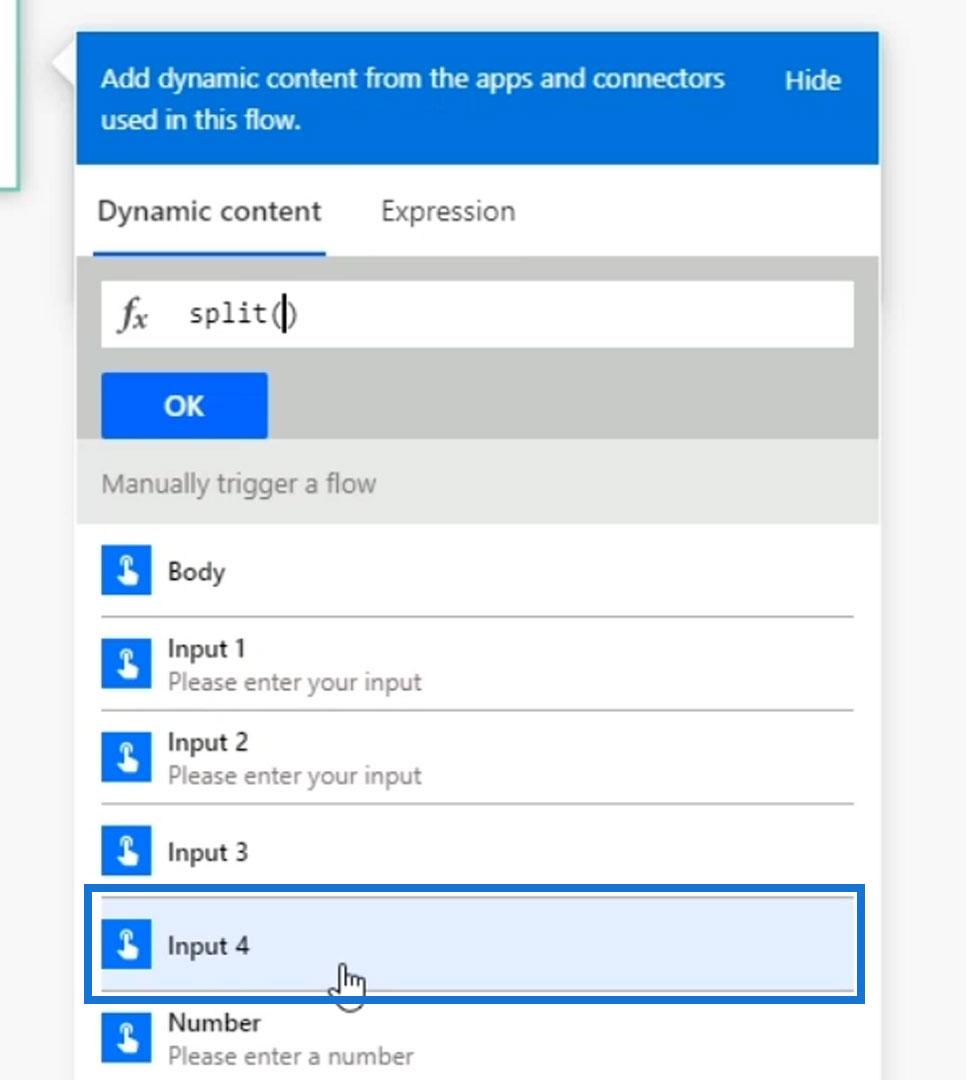

For the text parameter, choose the Input 4 variable.

Power Automate split

For the separator, we’re going to use a space. Then click the OK button.

Power Automate split

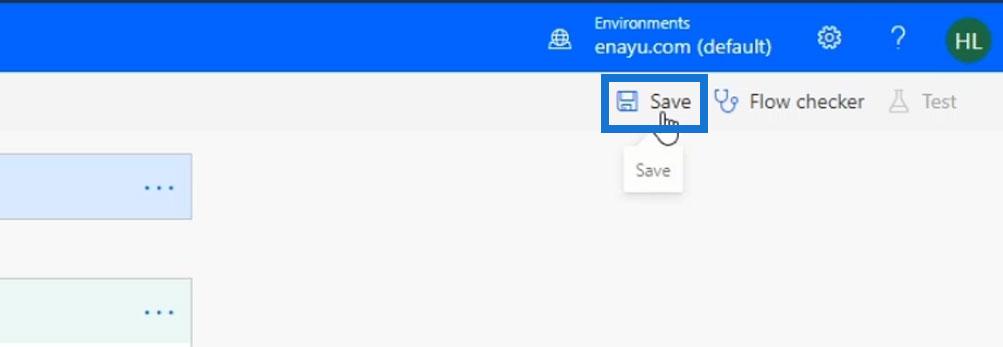

Lastly, click Save.

Testing The Flow

Let’s now see what happens. Click Test.

Choose the I’ll perform the trigger action option. Then click Test.

Enter any data for the other inputs. As for Input 4, just type “the apple falls far from the tree”. Then click Run flow.

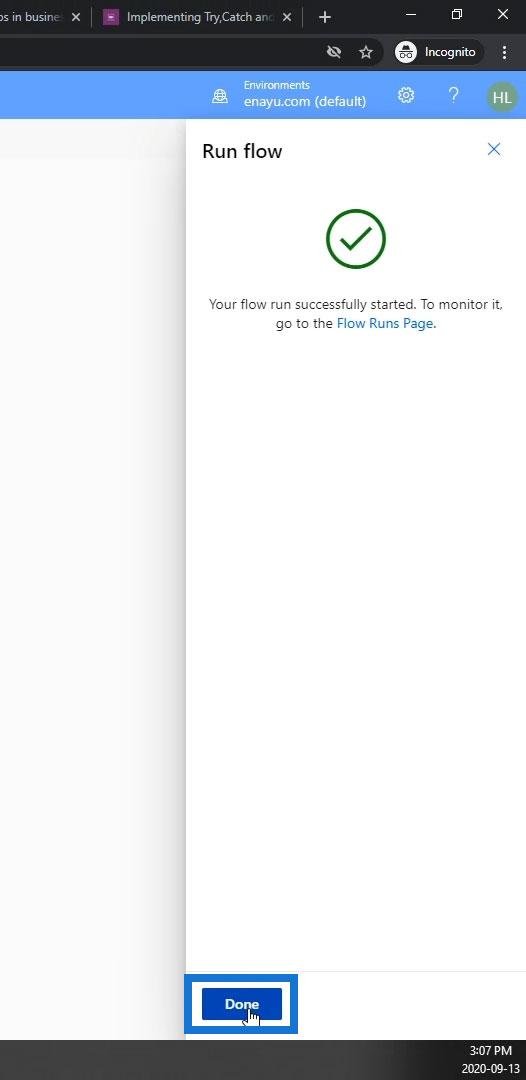

Click Done.

Upon checking Slack, the returned output is exactly what we thought it would be.

Power Automate split

This is now sending us an array and not the actual string.

Usage Of Arrays

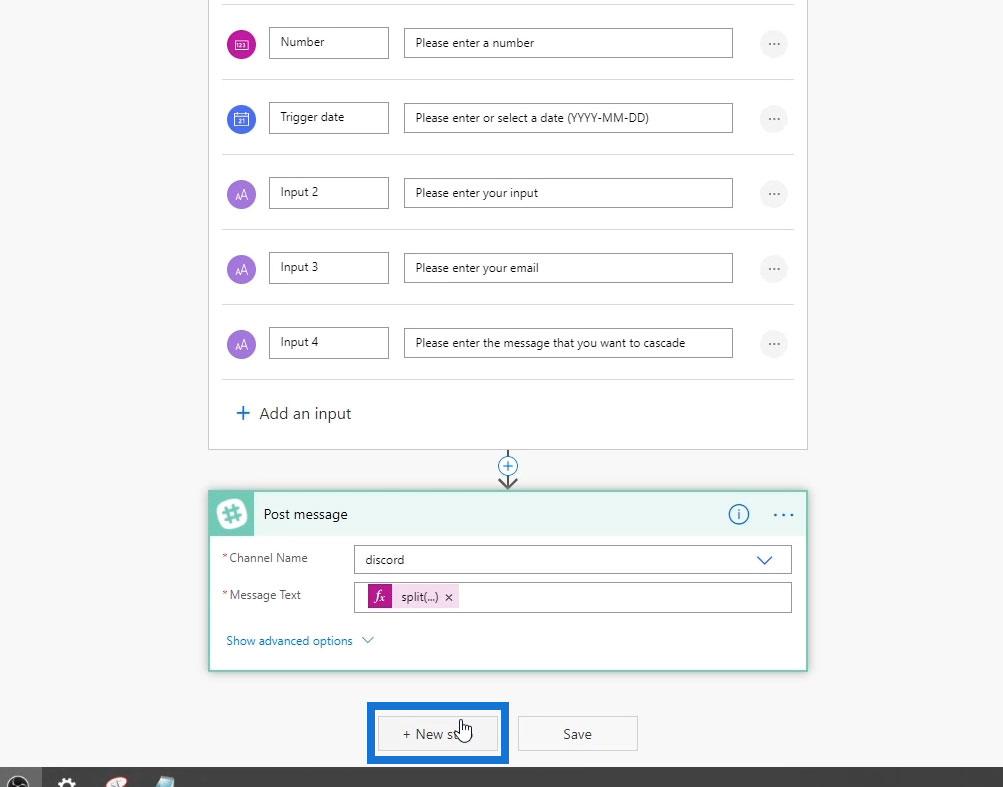

Let’s now discuss some things that you can do with an array. First, let’s add a new step.

Power Automate split

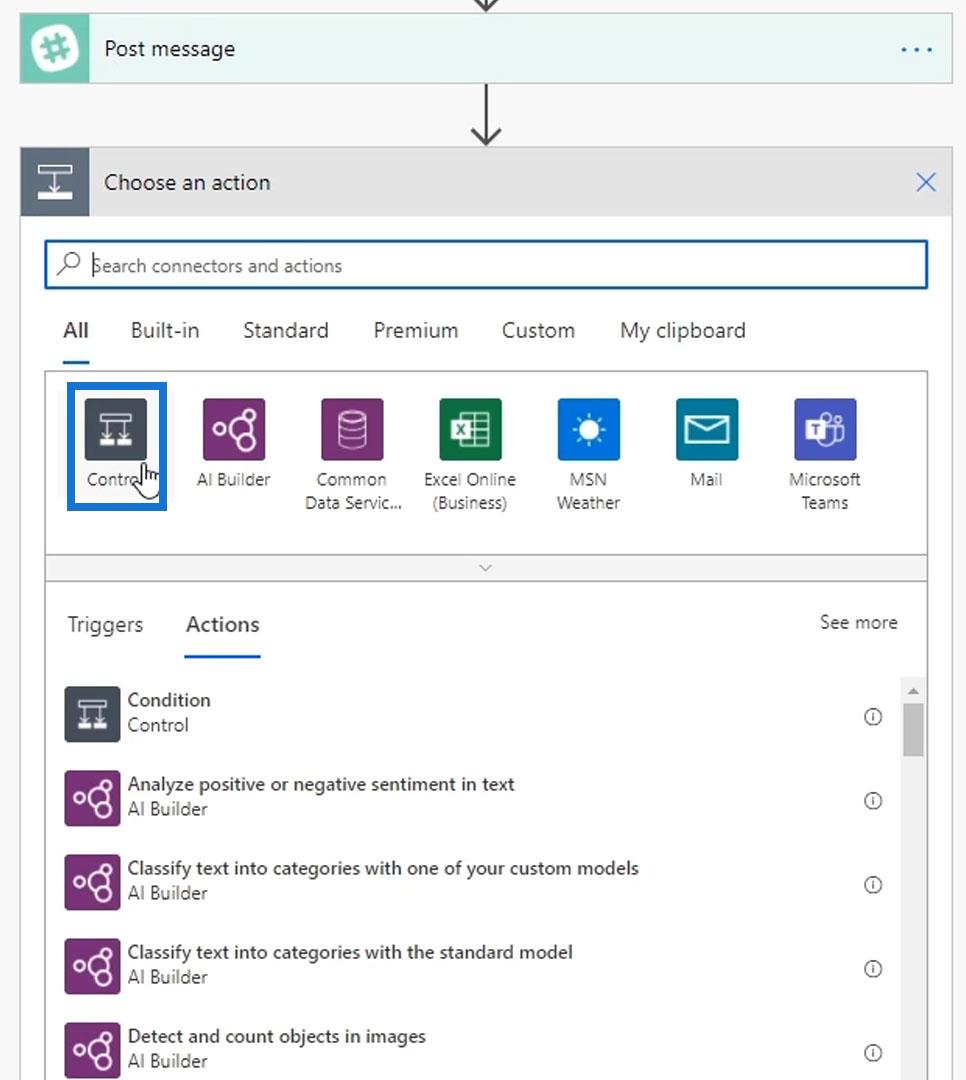

Then click Control.

Power Automate split

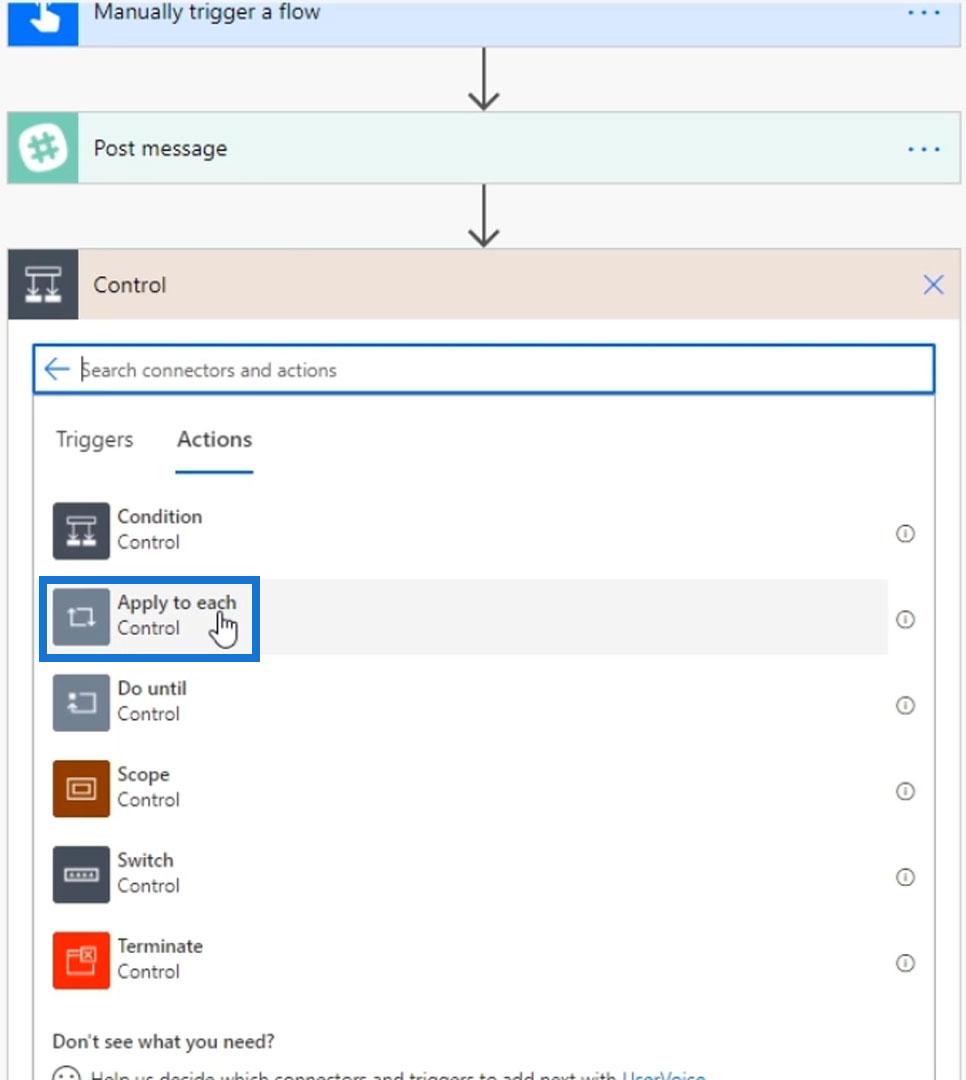

After that, choose the Apply to each control.

Under the Expressions tab, choose the split function.

Power Automate split

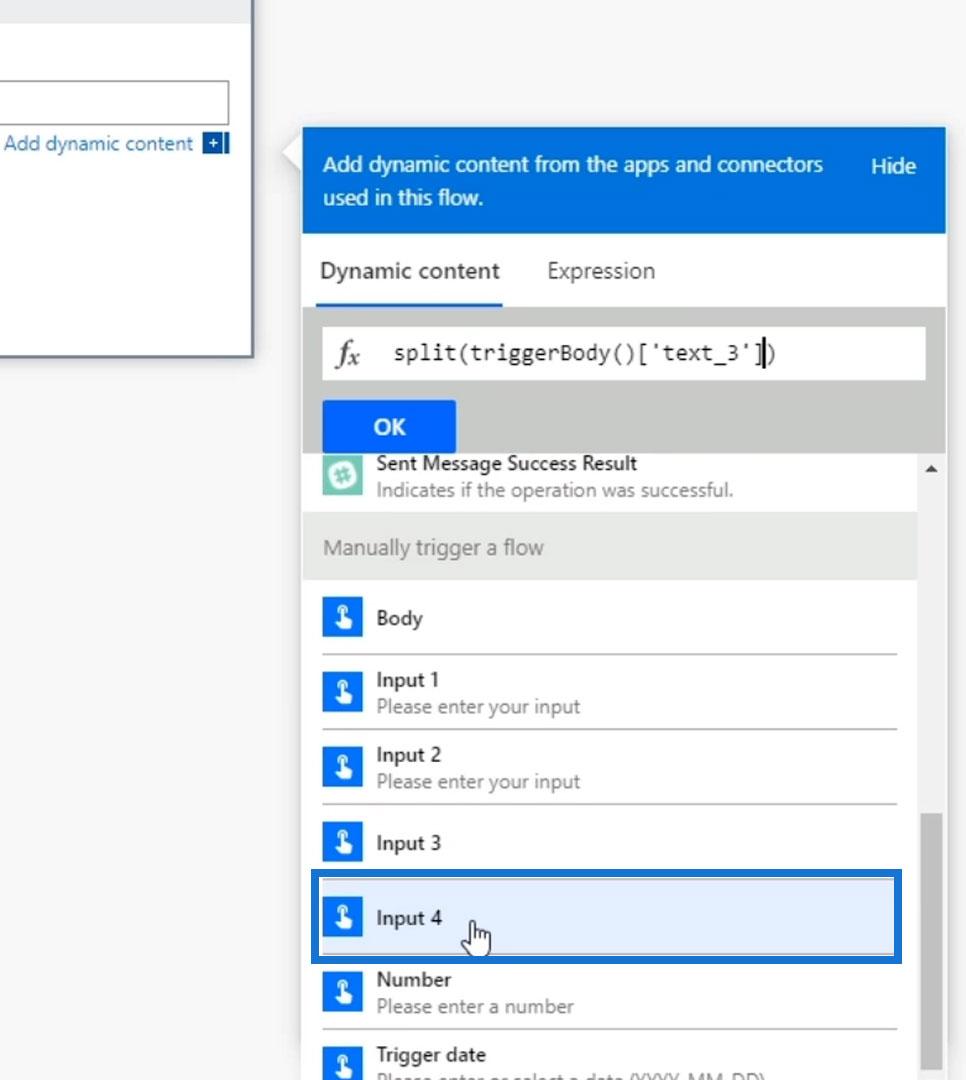

Then select the text itself, which is the Input 4 variable.

Make sure to type the separator which is a space. Then click OK.

Power Automate split

After that, let’s add another action.

Power Automate split

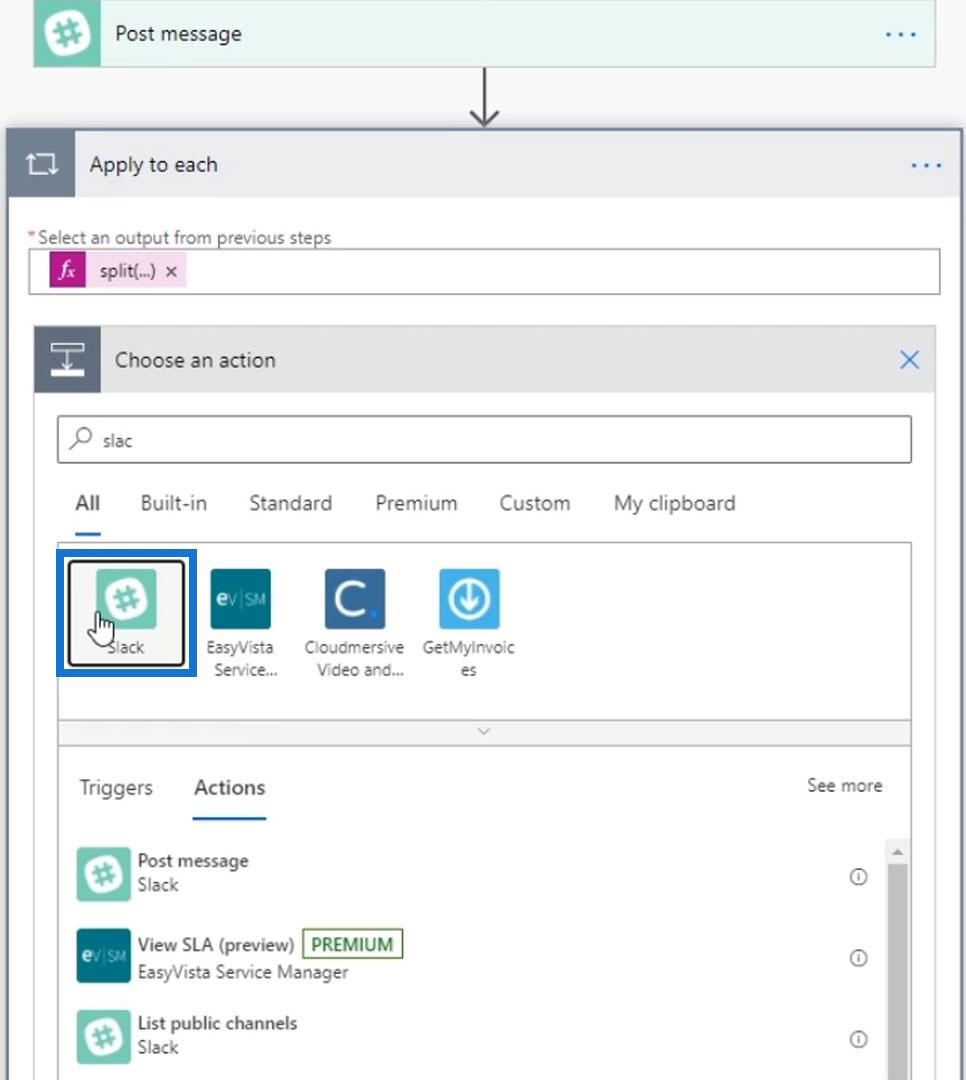

Search and select the Slack connector.

Then choose the Post message action.

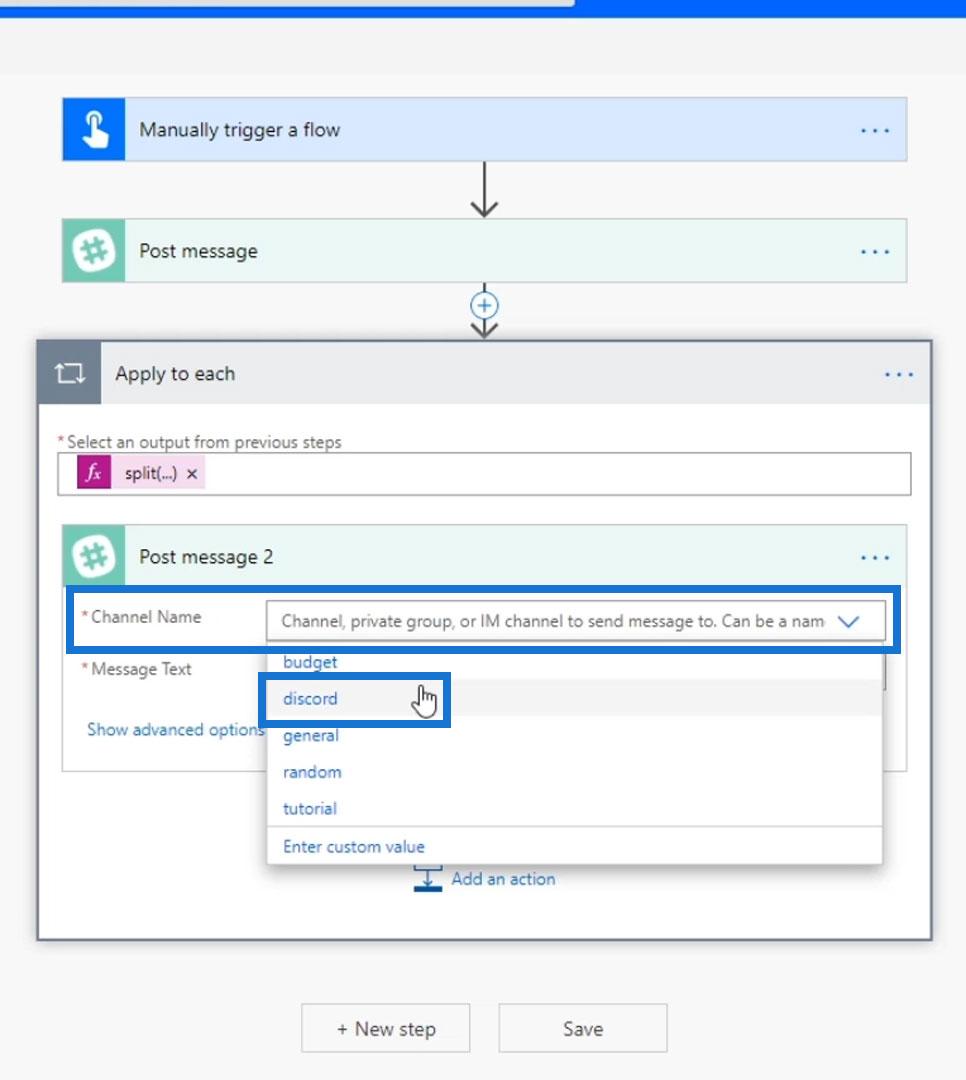

Let’s post a message to the same Slack channel (discord).

For the Message text, instead of posting Input 4 or the array, we’re going to post the Current item.

By using the Apply to each control, it’s first getting the array of strings via the split function. Then, for each item in the array, it’s posting that current item. So let’s see what that looks like. Click Save.

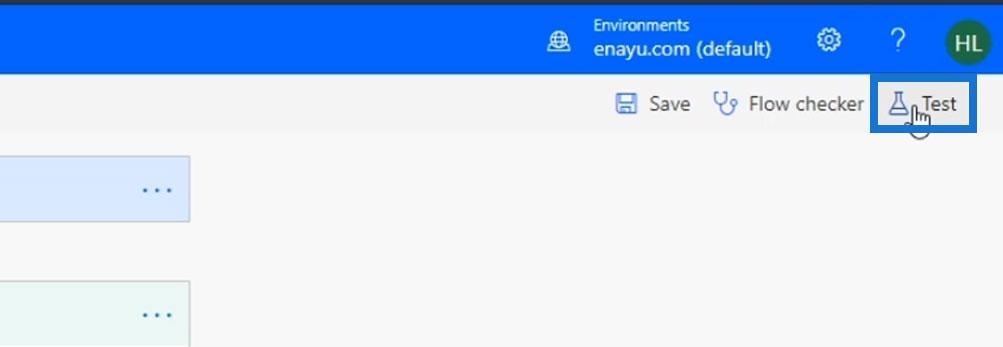

Click Test.

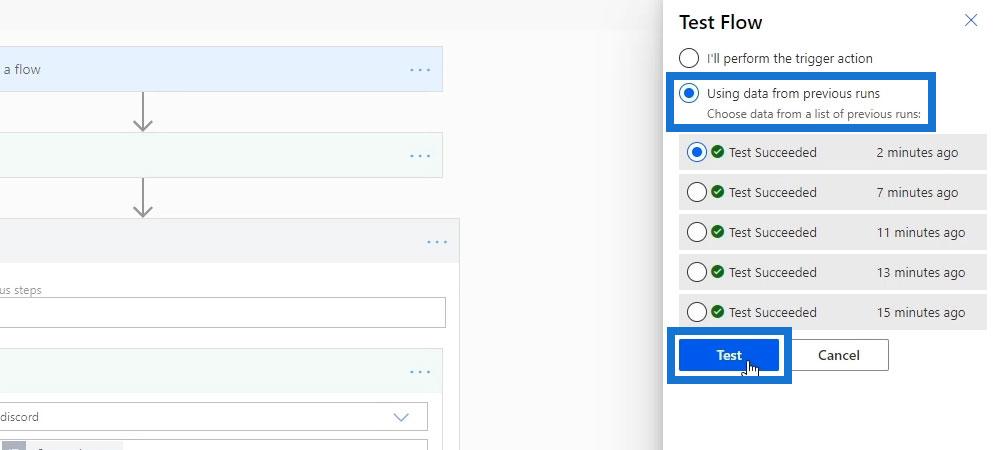

We’ll just use the previous run since no inputs have changed. Then click Test.

Upon checking our Slack, we’ll see that it successfully displayed each of the items from the array.

By doing this, we can perform actions on the array items separately.

Conclusion

To sum up, we’re able to discuss the usage of the Power Automate split function in our flows. It breaks down strings into an array of strings using the defined delimiter. The delimiter serves as the separator. In our example, we used space. People usually use commas, but you can certainly have different delimiters for each purpose.

We can also iterate through the array items then perform certain actions to each of them. We usually do that by using the Apply to each control. This technique is definitely useful when working on a collection of data.

All the best,

Henry
